Read these original instructions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners.

• Be sure to read the safety instructions no. 5.956-249.0 prior to the initial startup.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

• Notify the dealer immediately in the case of shipping damage.

It is essential to read the enclosed safety instructions for wet/dry vacuum cleaners before using the device for the first time!

The device is intended for:

• Wet and dry cleaning of floor and wall surfaces

• For vacuuming moist or liquid substances

• Vacuuming dry, non-flammable dusts from machines

• Industrial usee.g. in storage and production areas

• Commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

Any other use constitutes improper use.

The device must not be used for the following purposes:

• Vacuuming of dangerous dusts

• Crane loading

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

1. Bring the device into the working position.

2. Secure the device with the parking brakes.

3. Insert the suction hose into the suction connection.

4. Plug the desired accessory onto the suction hose.

5. If necessary, fit a dust collection bag in the dirt receptacle (see chapter Fitting the dust collection bag).

6. Ensure that the dirt receptacle is correctly fitted.

A dust collection bag can be inserted into the dirt receptacle to allow dust-free emptying of the device.

1. Fit the dust collection bag in the dirt receptacle and carefully press it against the wall of the container.

2. Fold the edge of the bag over the edge of the dirt receptacle.

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.

Lock the dirt receptacle by operating the bow handle with both hands.

3. Fit the dirt receptacle in the device.

After vacuuming moist or liquid substances, see chapter Switching from wet to dry vacuuming.

1. Plug the mains plug into the socket.

2. Switch on the device via the suction turbine power switches.

   Note

   Select the required suction power via the suction turbine power switch, starting with suction turbine 1. Always switch the suction turbines on and off one after the other.

3. Start the vacuuming process.

1. Regularly check the filling level in the dirt receptacle, since the device does not switch off automatically.

2. If necessary, empty the dirt receptacle (see chapter Emptying the dirt receptacle).

3. If necessary, clean the filter (see chapter Cleaning the filter) or change/replace the filter (see chapter Changing/replacing the filter).

1. Remove the dust collection bag, if necessary, before wet vacuum cleaning (see chapter Emptying the dirt receptacle).

2. After wet vacuum cleaning:

   1. Dry the filter.

   2. Clean the dirt receptacle with a moist cloth and dry it off.

1. Allow the wet filter to dry completely or replace it with a dry filter before using the device for dry vacuuming.

2. Replace the filter if necessary.

Clean the star pleated filter at regular intervals.

1. Switch off the device.

2. If dry suction material has been extracted, move the filter cleaning lever back and forth at least 5 times.

1. Switch off the device via the suction turbine power switches.

2. Pull out the mains plug.

1. Remove the accessories.

2. Remove the accessories and, if necessary, flush with water and allow to dry.

3. Empty the dirt receptacle (see chapter Emptying the dirt receptacle).

4. Vacuum the inside and outside of the device and clean with a moist cloth.

5. Remove the filter for drying if wet suction material has been vacuumed.

Regularly check the filling level in the dirt receptacle, since the device does not switch off automatically.

1. Switch off the device.

2. Secure the device with the parking brakes.

3. If dry suction material has been extracted, move the filter cleaning lever back and forth at least 5 times.

---



4. Pull the bow handle up.

   The dirt receptacle is unlocked and lowered.

5. Pull the dirt receptacle out of the device by the bow handle.

6. Remove the dust collection bag if necessary.

   1. Close the dust collection bag and remove it from the dirt receptacle.

   2. Dispose of the dust collection bag and contents according to the applicable waste disposal regulations.

7. Empty the dirt receptacle.

   Note

   The dirt receptacle can be lifted by crane at the handle. The maximum load for transport by crane is 50 kg.

   CAUTION

   Exceeding the permissible total weight

   Risk of injury and damage

   Observe the total weight of the dirt receptacle when transporting it by crane.

   Do not overload the receptacle.

   Observe the valid instructions for crane operation.

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.

Lock the dirt receptacle by operating the bow handle with both hands.

8. Insert the dirt receptacle into the device in reverse order.

1. Secure the device against slipping and tipping over when transporting in vehicles.

1. Store the device indoors only.

Have the device regularly inspected according to the respective national accident prevention regulations. Maintenance work as specified by the manufacturer must be performed by a technically qualified person at the specified regular intervals and in accordance with the applicable regulations and safety requirements. Work on electrical components may only be performed by a qualified electrician. Please contact a KÄRCHER branch office if you have any questions.

No periodic maintenance intervals are specified for this device. The following maintenance is to be performed as necessary:

• Wash the filter.

• Change the filter.

• Replace the filter.

The star folded filter can be washed out under running water.

1. Always flush the star folded filter from the inside to the outside so that no remaining particles impair the filter performance.

1. Switch off the device.

2. Pull out the mains plug.

3. Unlock and remove the suction head.

4. Unlock and remove the spacer.

5. Remove the star pleated filter.

6. Check the sealing ring for damage.

7. Insert the new star pleated filter:

   1. Pull the new star pleated filter over the filter vibrator on the spacer such that the vibrating elements are aligned centrally in the filter bags.

   2. Place the spacer with star pleated filter and filter vibrator on the filter ring.

   3. Lock the spacer.

8. Fit and lock the suction head.

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

• Suction turbine does not start up

• Suction power decreases

• Escaping dust when vacuuming

Remedy:

1. Check the socket and the power supply fuse.

2. Check the mains cable and the mains plug of the device.

3. Switch the device on.

Remedy:

1. Remove the blockages from the suction nozzle, the suction pipe or the suction hose.

2. Clean the filter (see chapter Cleaning the filter).

3. Empty the dirt receptacle (see chapter Emptying the dirt receptacle).

Remedy:

1. Check the seating of the filter and correct if necessary.

2. Clean the filter (see chapter Cleaning the filter).

3. Replace the filter (see chapter Changing/replacing the filter).

At the end of its service life, the device is to be disposed of in accordance with statutory regulations.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

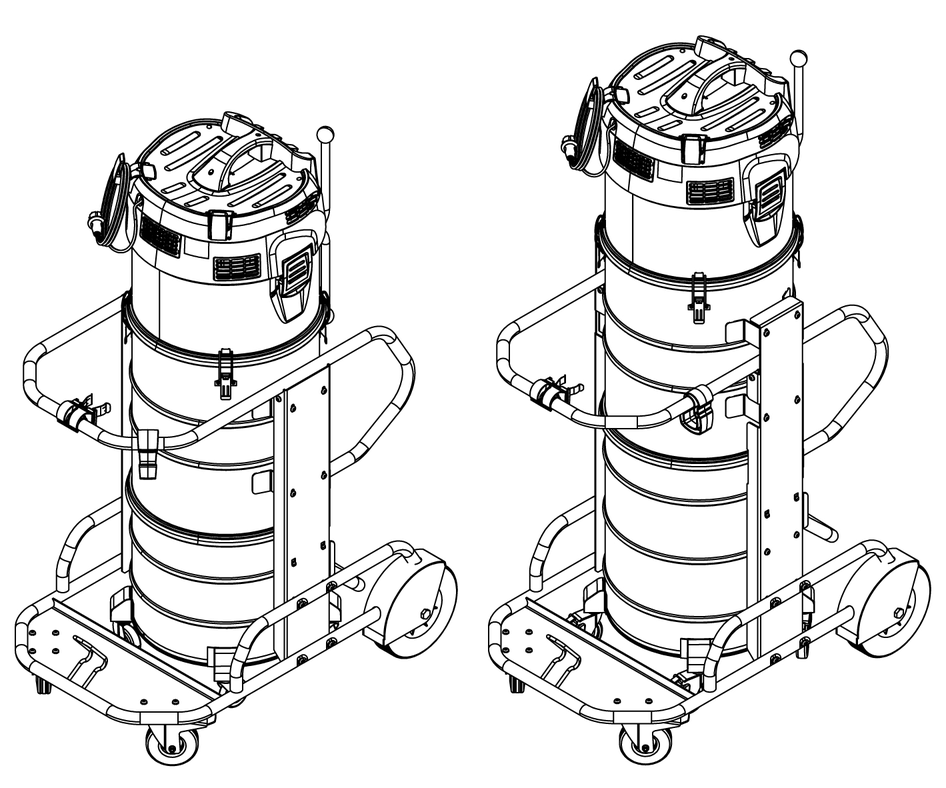

• IVM 60/36-3

• IVM 100/36-3

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Wet/dry vacuum cleaner

Type: 1.573-xxx

Type: 9.989-xxx

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

EN 60335-1

EN 60335-2-69

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN IEC 61000-3-2: 2019

EN 61000-3-3: 2013 + A1: 2019

EN 61000-3-11: 2000

EN 62233: 2008

EN IEC 63000: 2018

-

The signatories act on behalf of and with the authority of the Executive Board.

---

Documentation supervisor:

A. Haag

Kärcher Industrial Vacuuming GmbH

Robert-Bosch-Straße 4-8

73550 Waldstetten (Germany)

Ph.: +49 7171 94888-0

Fax: +49 7171 94888-528

Waldstetten, 24/04/01

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Wet/dry vacuum cleaner

Type: 1.573-xxx

Type: 9.989-xxx

S.I. 2008/1597 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2012/3032 (as amended)

EN 60335-1

EN 60335-2-69

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN IEC 61000-3-2: 2019

EN 61000-3-3: 2013 + A1: 2019

EN 61000-3-11: 2000

EN 62233: 2008

EN IEC 63000: 2018

-

The signatories act on behalf of and with the authority of the Executive Board.

---

Documentation supervisor:

A. Haag

Kärcher Industrial Vacuuming GmbH

Robert-Bosch-Straße 4-8

73550 Waldstetten (Germany)

Ph.: +49 7171 94888-0

Fax: +49 7171 94888-528

Waldstetten, 24/04/01
