Read these original operating instructions and the safety instructions chapter before using the device for the first time. Act in accordance with them.

Keep them safe for future reference or for future owners.

1. Place the appliance on a horizontal surface.

2. Turn off the engine switch.

   ---



3. Check engine for fuel or oil leakage. Eliminate leakage if any.

4. Check that all screws are tightened. All covers must be fixed in place. Tighten loose connectors.

5. Check the surroundings of the muffler for dirt. Remove any dirt present.

6. Check the air filter for dirt and damage. Clean the air filter depending on the degree of contamination.

7. Check the oil level. For more information, see ChapterChecking the oil level.

   ---



8. Unscrew the fuel tank lid.

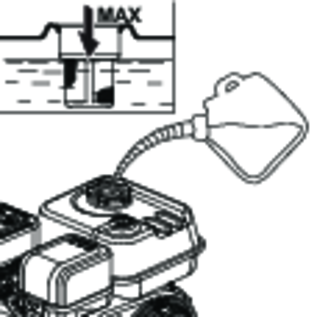

9. Refill the tank.

   ---



Note

• Please use gasoline fuel that matches the specifications of the environment.

• Do not exceed the maximum level, i.e. the filter plane.

(For more information, see ChapterTechnical data.)

10. Close the fuel tank lid.

11. Check the device driven by the engine for operational safety. If the device is out of order, do not start the engine.

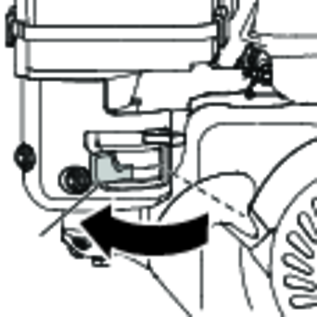

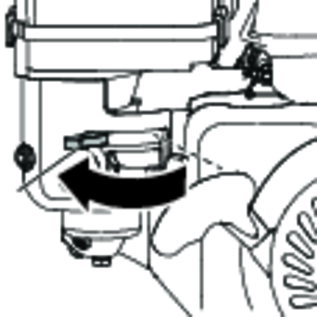

1. Open the fuel cock.

   ---

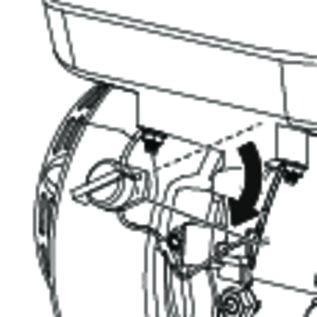

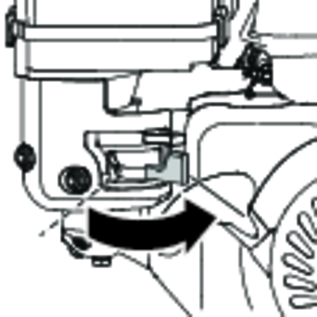

2. Close the choke.

   ---



   Note

   Do not close the choke while the engine is warm.

3. Turn on the engine switch.

   ---

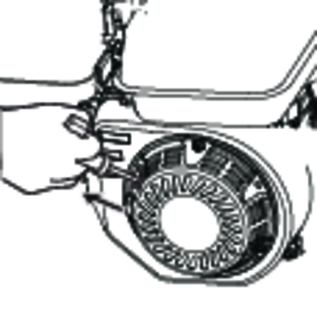

4. Slowly pull the starter rope until you feel resistance.

   ---



5. Use both hands to quickly pull the starter rope all the way out.

6. Slowly release the starter rope to the default state.

ATTENTION

Incorrect operation

Damage to the starter

Slowly release the starter rope back after starting.

7. If the engine is not started, repeat steps 4-6.

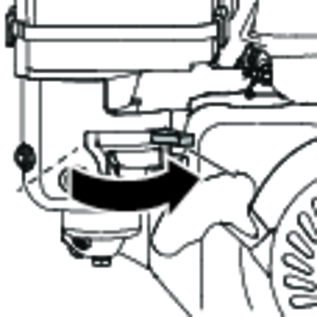

8. As soon as the engine has warmed up and is running smoothly, open the choke.

   ---



1. Turn off the engine switch.

   ---

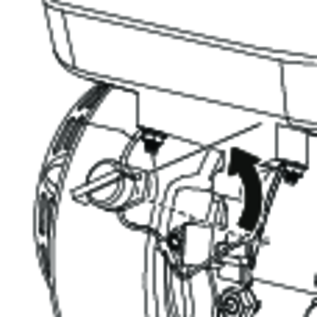

2. Close the fuel cock.

   ---



Allow the engine to cool down for at least 15 minutes before shipment. After the engine has cooled down, move it to the transport vehicle.

1. Remove the spark-plug connector.

2. Change the oil.

   For more information, see ChapterChanging the oil.

3. Allow the engine to cool down for at least 30 minutes.

4. Clean the outer surface of the engine.

5. Repair damaged paint and slightly apply oil on surfaces prone to rust.

6. When storing the appliance for more than one month, drain the fuel.

7. Unscrew the spark plug.

8. Put 5 - 10 cm³ engine oil into the cylinder.

9. Pull the starter rope several times to spread the oil in the engine.

10. Screw in the spark plug.

11. Pull the starter rope slowly until you feel resistance.

12. Slowly release the starter rope.

13. Store in a dry place.

Before doing work with the appliance, you must place the appliance on a horizontal surface.

X: Implemented by users

O: Implemented by Customer Service

A: Service more frequently when used in dusty areas

1. Turn off the engine switch.

2. Place the appliance on a horizontal surface.

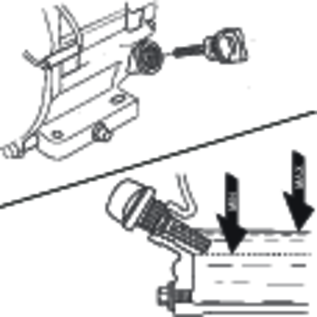

3. Remove the dipstick and wipe the dipstick.

   ---



4. Insert (do not screw in) the dipstick into the oil filling port until the stop, and pull it out again. Read the value of the oil level.

5. In case of low oil level:

   Refill oil (SAE 10 W30 or SAE 15 W40) to the lower edge of the oil filling port.

   (For the maximum refueling quantity, see Chapter Technical data.)

6. Screw in the dipstick.

1. Remove the dipstick and wipe the dipstick.

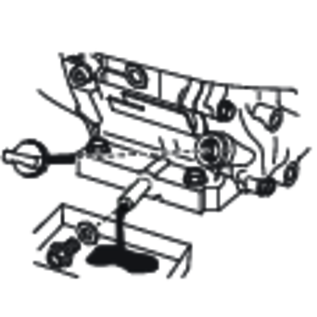

2. Unscrew the oil drain bolt and collect the drained oil.

   ---



3. Place the oil drain screw and tighten it.

4. Place the appliance on a horizontal surface.

5. Refill oil (SAE 10 W30 or SAE 15 W40) to the lower edge of the oil filling port.

   (For the maximum refueling quantity, see Chapter Technical data).

6. Screw in the dipstick.

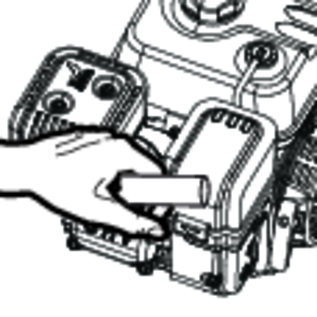

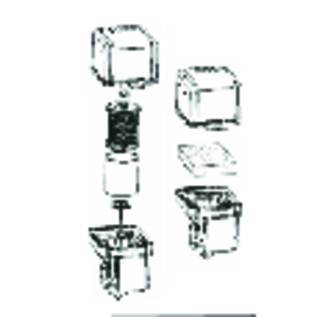

1. Unscrew the screw of the air filter housing.

2. Remove the air filter housing.

   ---



3. Clean or replace the dirty filter element.

4. Replace the damaged filter element.

5. Reinstall the air filter.

6. Reinstall the air filter housing.

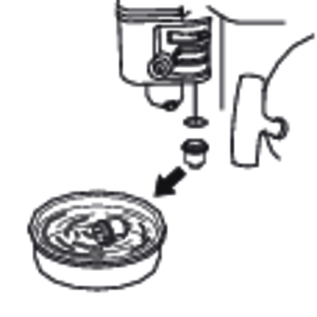

1. Close the fuel cock.

   ---



2. Unscrew the sediment cup.

   ---



3. Remove the O-ring.

4. Clean the sediment cup and the O-ring using a non-flammable solvent and allow them to dry.

5. Insert the O-ring into the fuel cock.

6. Screw in the sediment cup and tighten it.

7. Open the fuel cock.

   ---



8. Check the sediment cup for leaks.

9. Replace the O-ring in case of leaks.

1. Remove the spark plug connector.

   ---



2. Clean the spark plug and the surroundings.

3. Unscrew the spark plug.

4. Replace a spark plug with worn electrodes or broken insulators.

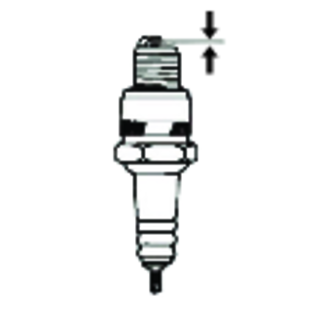

5. Check the distance between the electrodes of the spark plug.

   For more information, see contact clearance in ChapterTechnical data.

   ---



6. Carefully screw in the spark plug by hand. Do not cant the thread.

7. Turn the spark plug up to the stop using the spark plug wrench, and tighten it as follows:

   1. Tighten used spark plugs with 1/8 - 1/4 rotation.

   2. Tighten a new spark plug with 1/2 rotation.

8. Push on the spark plug connector.

• Engine does not start

• Engine does not start

• Engine does not start

• Engine does not start

• Engine does not start

• Engine does not start

• Engine does not start

• Engine does not start

• Low engine power

• Low engine power

• Low engine power

• Compression too low or does not exist

Cause:

The engine switch has been turned off.

Remedy:

1. Turn on the engine switch.

Cause:

The fuel cock is closed.

Remedy:

1. Open the fuel cock.

Cause:

The choke is opened.

Remedy:

1. Close the choke unless the engine is warm.

Cause:

There is insufficient fuel.

Remedy:

1. Refill the tank.

Cause:

Fuel type does not match or old fuel was filled.

Remedy:

1. Drain the fuel tank and the carburettor.

2. Add new fuel of the specified type.

Cause:

The spark plug is soiled. / Distance between electrodes is incorrect.

Remedy:

1. Check the spark plug for damage.

2. Clean the spark plug.

3. Check the distance between the electrodes.

Cause:

The spark plug is defective.

Remedy:

1. Replace the spark plug.

Cause:

The spark plug is wet.

Remedy:

1. Dry the spark plug.

2. Screw in the spark plug.

Cause:

The air filter is blocked.

Remedy:

1. Check and clean the air filter.

Cause:

There is a lack of fuel.

Remedy:

1. Refill the tank.

Cause:

Fuel type does not match or old fuel was filled.

Remedy:

1. Drain the fuel tank and the carburettor.

2. Add new fuel of the specified type.

Cause:

Spark plug is not properly tightened.

Remedy:

1. Tighten the spark plug.

• G210FA

• G300FA

• G390FA
