Read this safety chapter and these original instructions before using the device for the first time. Act in accordance with them. Keep the original instructions for future reference or for future owners.

• In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

• Warnings and information notices attached to the device provide important information for hazard-free operation.

Only use the device in private households.

Intended use:

• Removal of water from building sections in the event of flooding

• Transferring and pumping water from containers

• Water removal from wells and shafts

• Pumping fresh water out of boats and yachts

For notes on functional principle, see chapter Operation.

Permissible feed fluids:

• Fresh water to the specified degree of soiling with a maximum particle size as specified in chapter Specifications.

• Swimming pool water with intended dosage of additives

• Washing lye, e.g. from leaking washing machines. Then rinse and clean the pump with clear fresh water, see chapter Rinsing and cleaning.

• The temperature of the pumped liquids must lie between 5 °C and 35 °C

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.com/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy possible malfunctions on your device within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

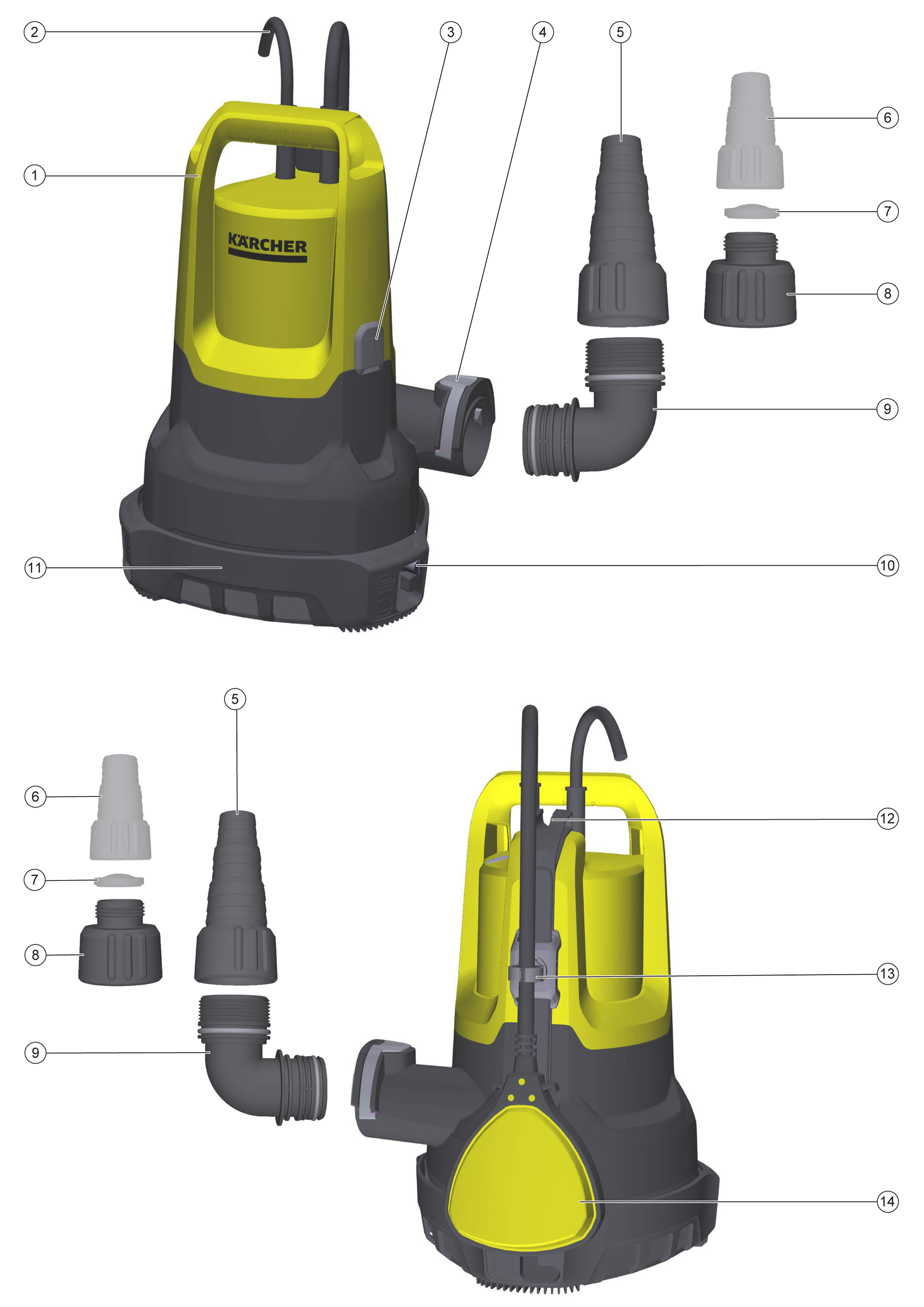

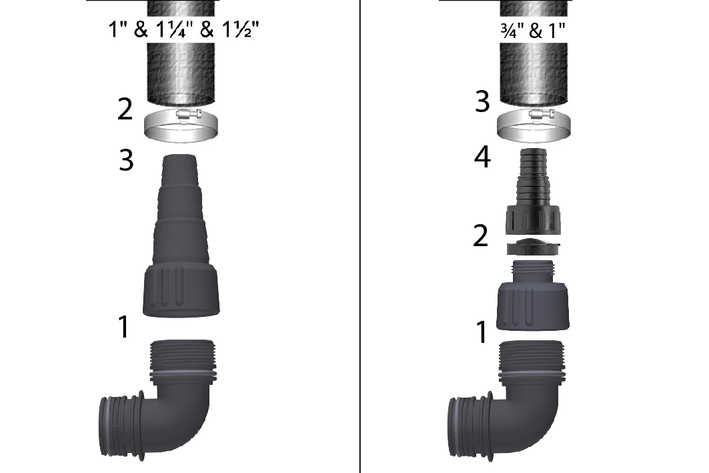

Connecting a hose to the pump when using a 1″, 1 ¼″ or 1 ½″ hose:

1. Screw the G 1 ½ pump connecting piece onto the connection nozzle.

   ---



2. Push the hose clamp onto the hose.

3. Push the hose onto the G 1 ½ pump connecting piece and fasten it with a hose clamp.

4. Push the connection nozzle into the Quick-Connect.

   ---



Connecting a hose to the pump when using a ¾″ or 1″ hose:

1. Screw the G 1 threaded connection onto the connection nozzle.

   ---



2. Fit the special accessory G 1 pump connecting piece(6.997-359.0 pump connecting piece G 1 (33.3 mm) incl. check valve - not included in the scope of delivery) onto the G 1 threaded connection:

   1. Place the check valve on the G 1 threaded connection so that the lettering "UP" is legible.

   2. Screw the pump connecting piece G 1 onto the G 1 threaded connection.

3. Push the hose clamp onto the hose.

4. Push the hose onto the pump connecting piece G 1 and fasten it with a hose clamp.

5. Push the connection nozzle into the Quick-Connect.

   ---



Erecting/immersing the pump:

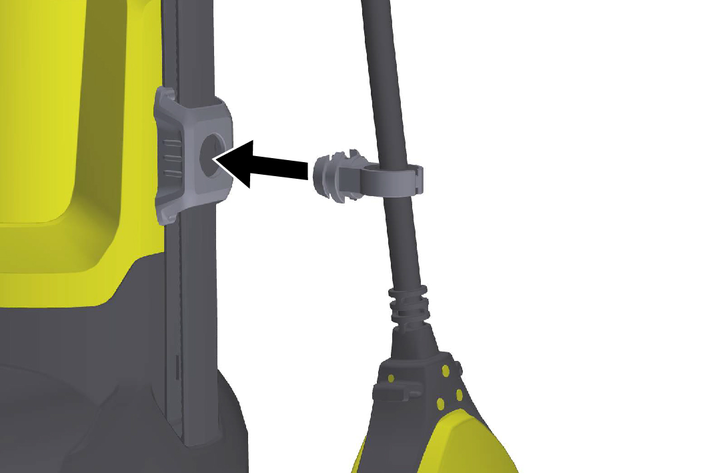

1. Insert the height adjustment of the float switch into the lock.

   ---



2. Place the pump securely on solid ground in the pumped liquid or immerse it via a rope attached to the carrying handle.

   Note

   The suction area must not be blocked by soiling. If the ground is muddy, place the pump on a brick or similar. Make sure that the pump stands level. Do not carry the pump using the cable or hose.

1. If the fluid level is low, any sucked-in air, or air present in the pump, may escape via the automatic venting device. Liquid can also leak along with air.

   If the pump has problems priming when the fluid level is low, unplug and plug in the mains plug repeatedly to assist the priming process.

   ---

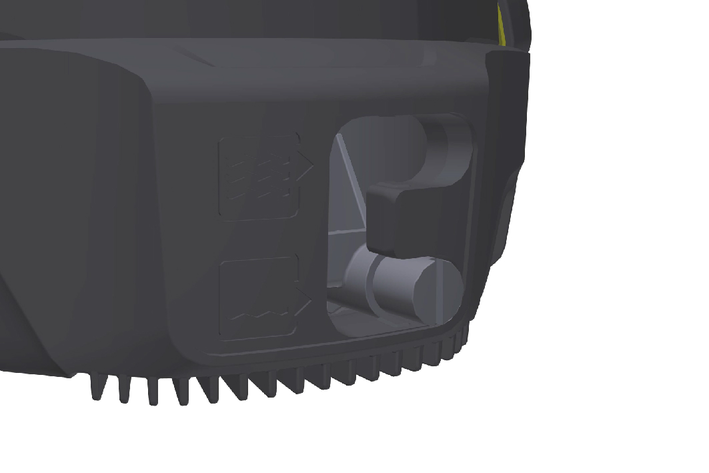

The filter basket can be operated in 2 positions.

---

	Waste water and clear water delivery. We would recommend this filter basket position at the start of the pumping process, since on this occasion the pumping capacity is at its greatest.
	Flat vacuuming. In this filter basket position, flat vacuuming is possible up to 1 mm residual fluid height in manual operation.

1. Put the pump on the ground.

2. Clamp the pump between your feet and take hold of the carrying handle.

3. Unlatch the filter basket by turning the handle to the right.

4. Move the filter basket into the required position.

5. Lock the filter basket in place by turning the handle to the left

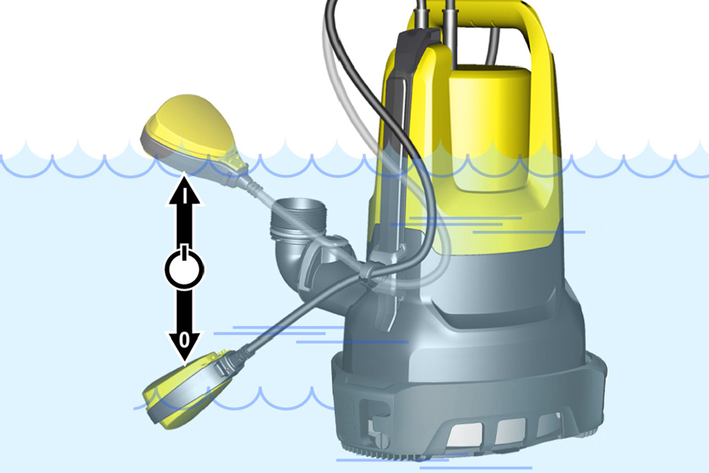

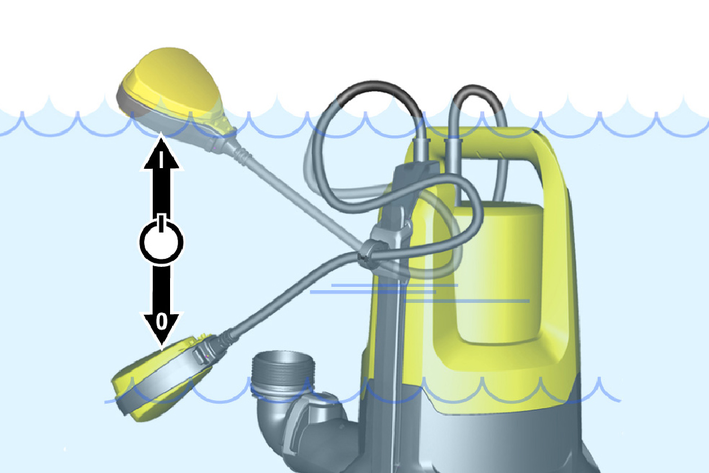

1. Set the float switch using the height adjustment, and the cable length between the float switch and the lock.

   Note

   When the pump is operated unattended, always set the float switch to the uppermost position in order to ensure that the pump can switch off reliably.

   ---

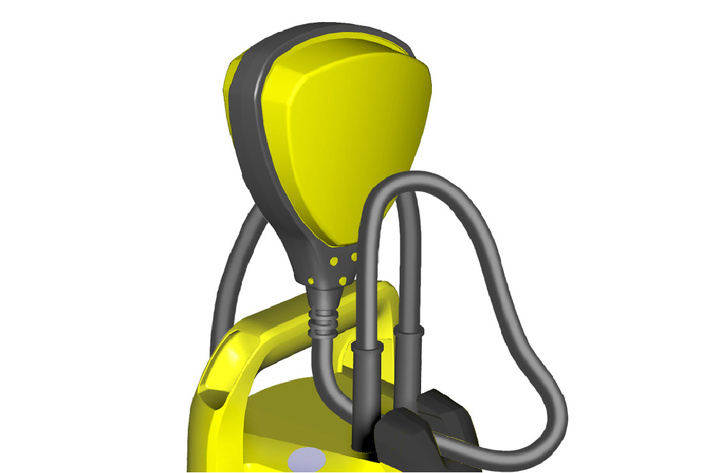

   When the float switch is set to the lowermost position, set the cable length between the float switch and the lock to 2.5 cm, see marking on the cable.

   ---



2. Move the filter basket into the "Waste water and clear water delivery" position, see chapter Adjusting the filter basket.

3. Plug the mains plug into the socket.

   Note

   In automatic mode, the float switch controls the pumping process automatically. The pump switches on as soon as the float switch reaches the switch-on height caused by the rising fluid level.

   The pump switches off when the float switch reaches the switch-off height caused by the sinking fluid level. The float switch must be able to move freely.

   Note

   The switching heights vary depending on:

   • Position of the float switch.

   • Cable length between the float switch and lock.

     The cable length must be at least 2.5 cm. We would recommend retaining the set cable length. For information on the switching heights, see chapter Specifications.

1. Fasten the float switch in the lock pointing upwards.

   ---



2. Move the filter basket to the desired position depending on the fluid level (see chapters Specifications and Adjusting the filter basket).

3. ATTENTION

   Risk of damage from dry running!

   Dry running leads to increased wear on the pump.

   Do not leave the pump unattended in manual operation.

   In case of dry running, immediately pull the mains plug out of the socket.

   Plug the mains plug into the socket.

1. Pull the mains plug out of the socket.

   The device stops.

2. ATTENTION

   Risk of damage!

   Risk of damage due to dried soiling or additives.

   Rinse and clean the device immediately after each use.

   If dirty liquids or liquids with additives have been pumped, rinse and clean the device immediately after finishing operation, see chapter Rinsing and cleaning.

3. Drain the device and accessories and let them dry.

1. If dirty liquids or liquids with additives have been pumped, the device must be rinsed afterwards: Use the device to pump clear fresh water without additives until all soiling or additives have been flushed out of the device.

2. DANGER

   Risk of electric shock and risk of injury!

   The device contains electrical and mechanical components.

   Always disconnect the device from the power supply before assembling, disassembling or cleaning.

   Pull the mains plug out of the socket.

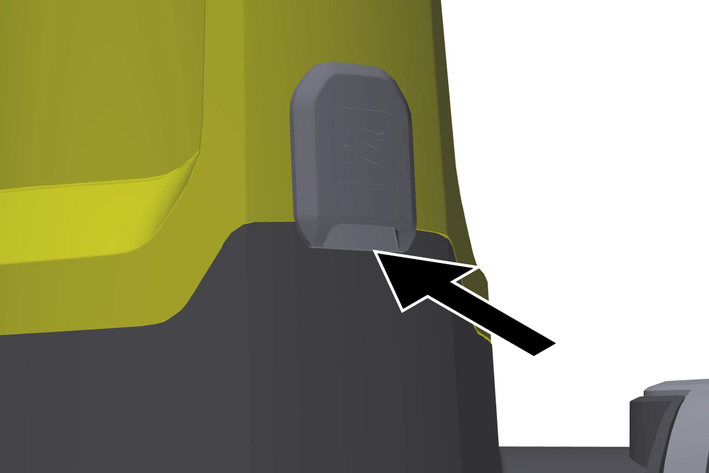

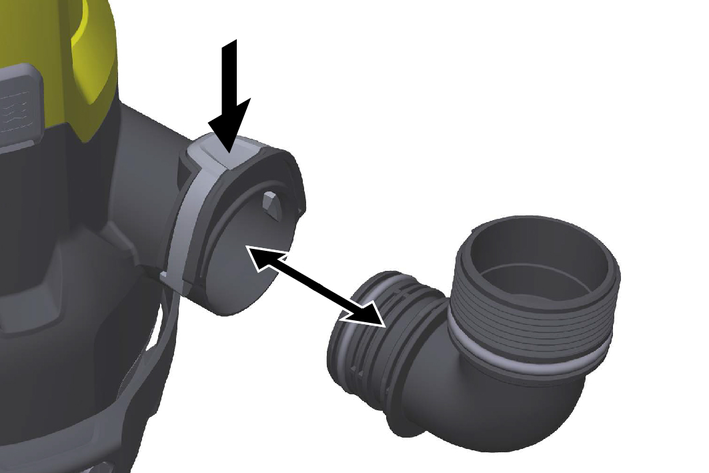

3. Press the Quick-Connect button and remove the connection nozzle.

   ---



4. Where necessary, remove residue from the hose and on Quick-Connect.

5. Clean the outside of the device with a soft, clean cloth and clear fresh water.

6. Drain the device and accessories and let them dry.

The device is maintenance-free.

Manual transport

1. CAUTION

   Risk of injury from tripping!

   There is a risk of injury from tripping on loose cables and hoses.

   Be careful of cables and hoses when moving the device.

   Lift and carry the device by the carrying handle.

Transport in vehicles

2. WARNING

   Risk of injury, risk of damage!

   Note the weight of the device during transport.

   Store or secure the device in accordance with applicable guidelines so that it cannot slip or be thrown around during transport.

   When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respectively applicable guidelines.

1. Completely empty the pump and accessories.

2. Allow the pump and accessories to dry out.

3. Store the pump in a frost-protected place.

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

• The pump is running, but not delivering

• The pump does not start up, or stops suddenly during operation

• The pumping capacity decreases

• The delivery rate is too low

• Quick-Connect cannot be opened or closed

• The filter basket cannot be moved

Cause:

Air is in the pump.

Remedy:

1. Pull the mains plug out of the socket and plug it in again several times, until the fluid is drawn in.

Cause:

The suction area is clogged.

Remedy:

1. Pull the mains plug out of the socket.

2. Clean the suction area.

Cause:

The fluid level is too low in manual operation.

Remedy:

1. Immerse the pump deeper into the feed fluid if possible, see chapter Operation.

Cause:

The power supply is disconnected.

Remedy:

1. Check the fuses and the electrical connections.

Cause:

The thermal protection switch has switched off the pump because of overheating.

Remedy:

1. Pull the mains plug out of the socket.

2. Allow the pump to cool down.

3. Remove any dirt particles in the suction area.

4. Clean the suction area.

5. Prevent the pump from running dry.

Cause:

Dirt particles block the suction area.

Remedy:

1. Pull the mains plug out of the socket.

2. Clean the suction area.

Cause:

The suction area is clogged.

Remedy:

1. Pull the mains plug out of the socket.

2. Clean the suction area.

Cause:

The maximum delivery head is exceeded.

The hose diameter and the hose length have been selected incorrectly.

Remedy:

1. Observe the maximum delivery head, see chapter Specifications.

2. If necessary, select a greater hose diameter or a shorter hose length, see chapter Optimising the flow rate.

Cause:

The push-fit system is dirty.

Remedy:

1. Remove the clip.

2. Clean the clip.

3. Install the clip.

Cause:

The filter basket is dirty.

Remedy:

1. Loosen the latch screws using a screwdriver.

2. Remove the filter basket.

3. Clean the filter basket.

4. Install the filter basket.

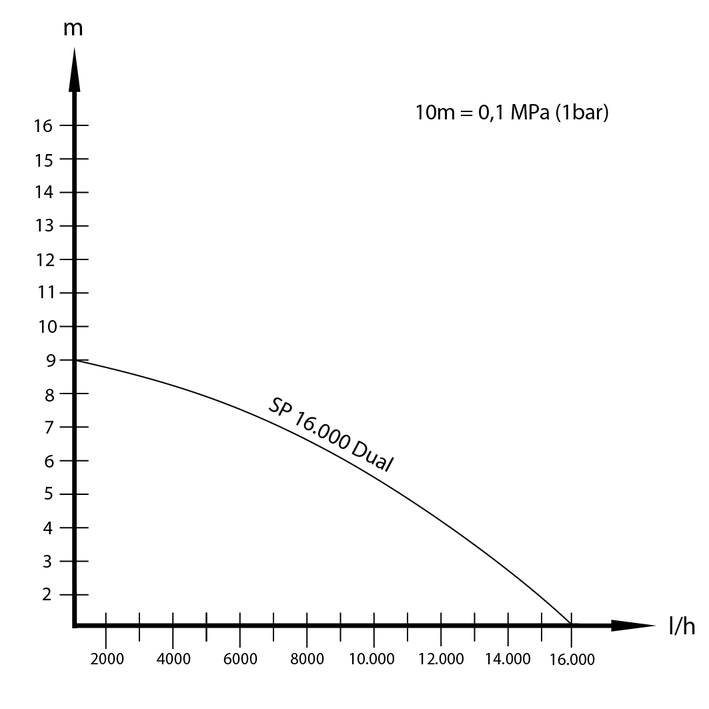

The flow rate is increased when:

• The lifting height is reduced.

• The diameter of the hose used is increased.

• The length of the hose used is decreased.

• The smaller the pressure loss caused by the connected up accessories.

---
