Read these original instructions and the enclosed safety instructions before using the device for the first time. Act in accordance with them.

Keep both books for future reference or for future owners.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

• Notify the dealer immediately in the case of shipping damage.

• Check the package contents when unpacking for missing accessories or for damage.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

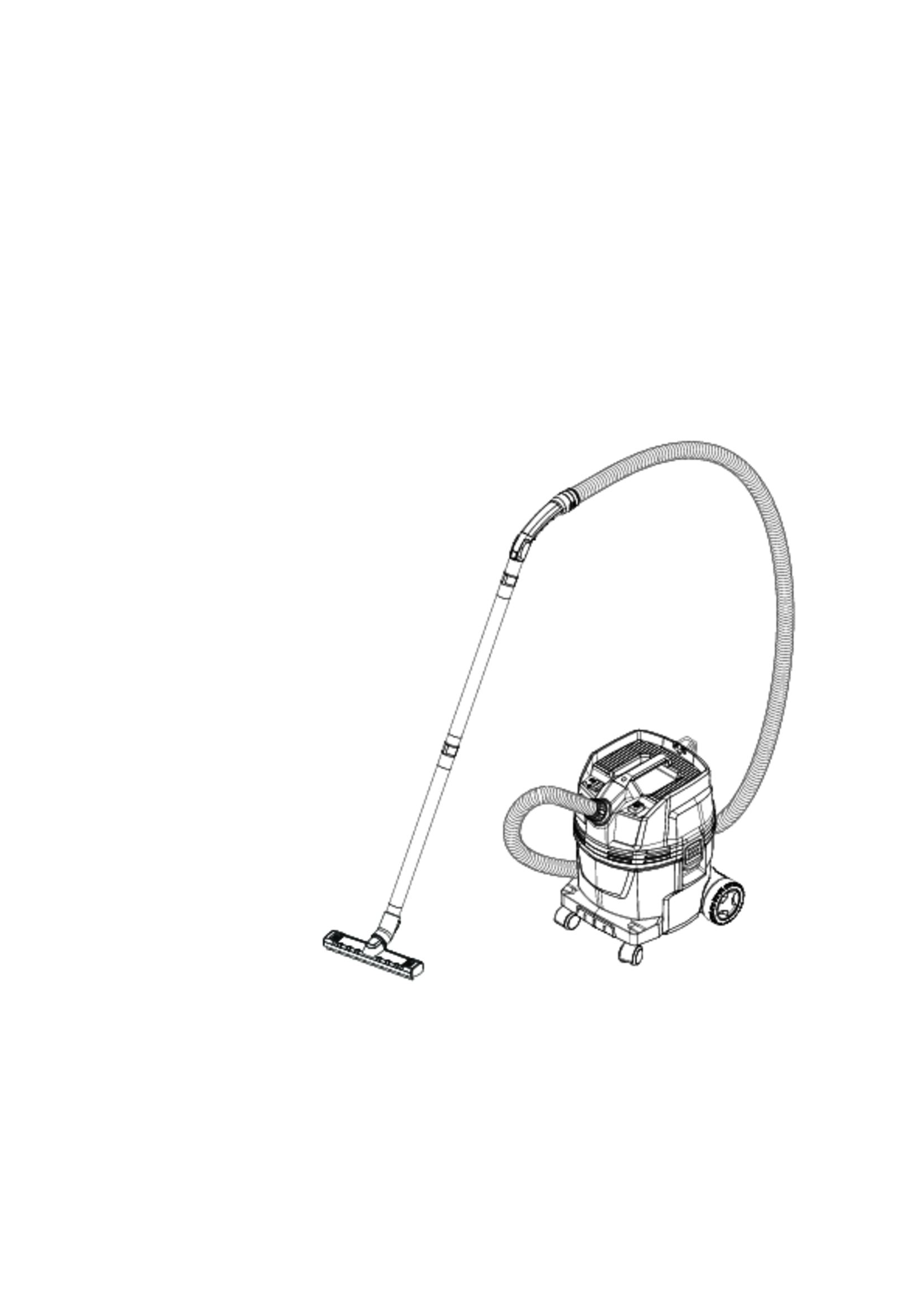

• This wet/dry vacuum cleaner is designed to remove dry dirt and liquids.

• This device is suitable for vacuuming dry, non-flammable dusts that are harmful to health from machines and devices; dust class L as per EN 60335-2-69. Restrictions: No carcinogenic substances may be vacuumed.

• This device is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

• For Switzerland only: The socket outlet shall only be used during operation in dry condition.

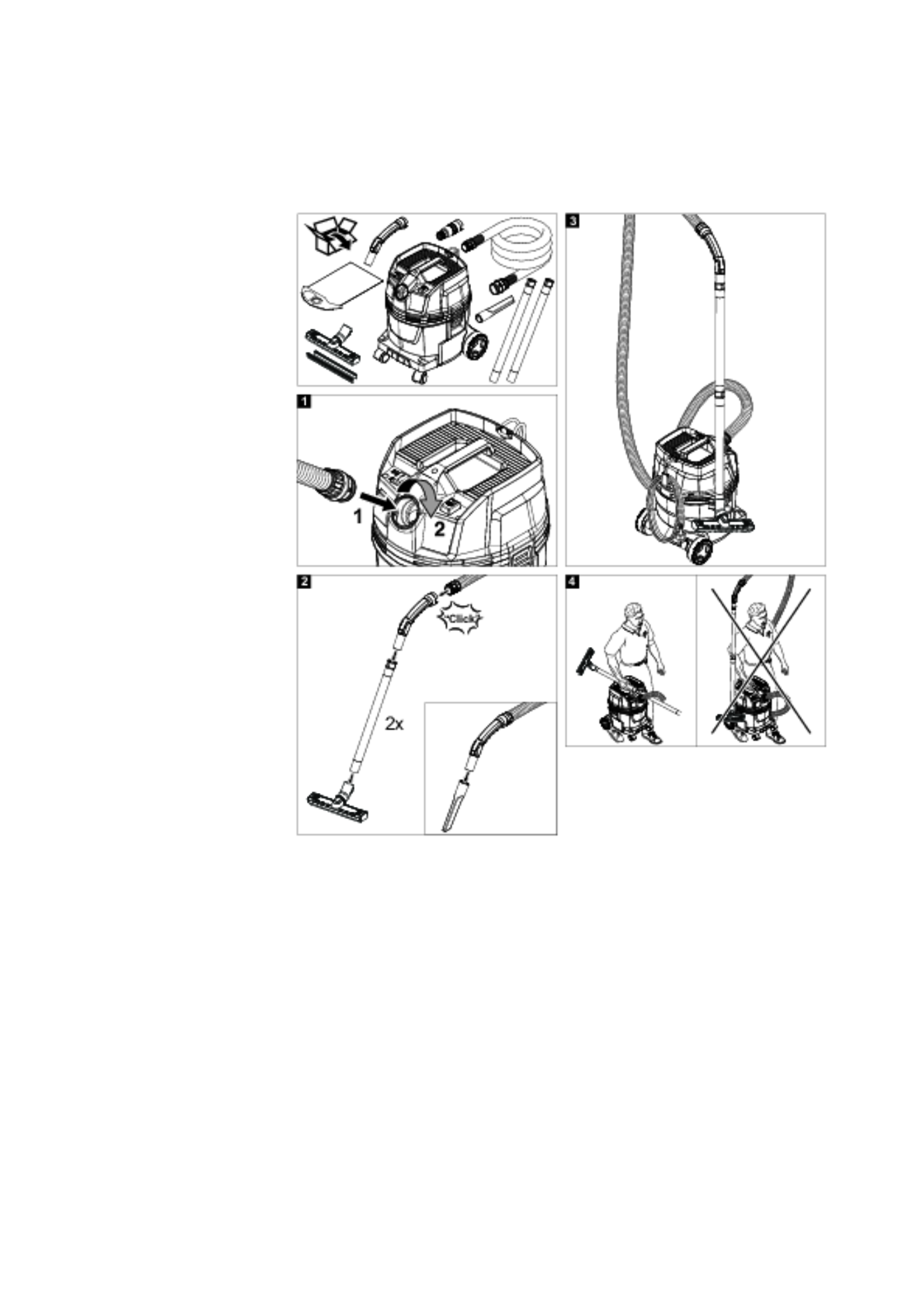

1. Unpack the device and install the accessories.

   ---



• The appliance is fitted with a fleece filter bag with lock latch, order no. 2.889-217.0 (5 pieces).

• An additional fleece filter bag can be used when vacuuming fine dust.

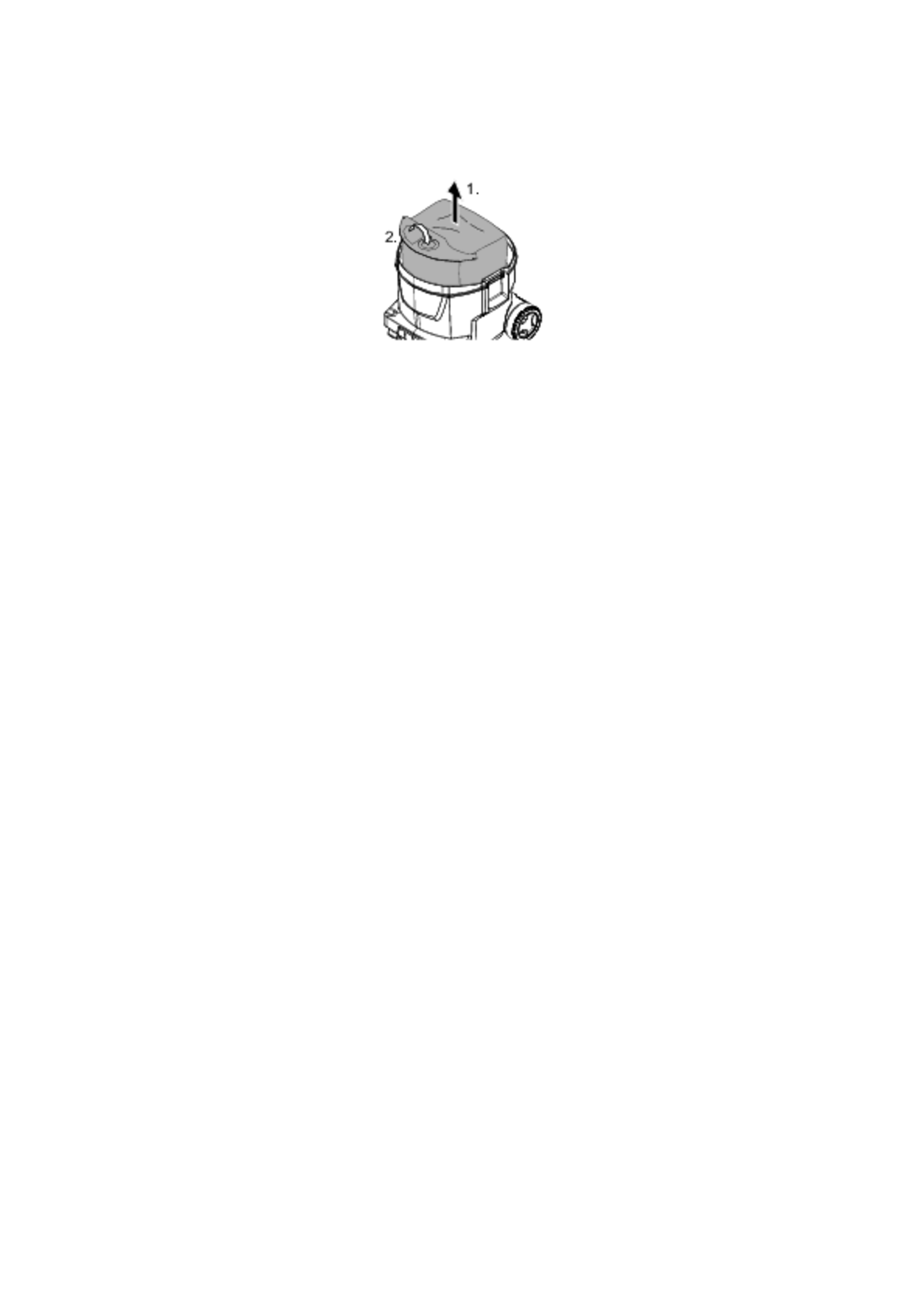

1. Unlock and remove the suction head.

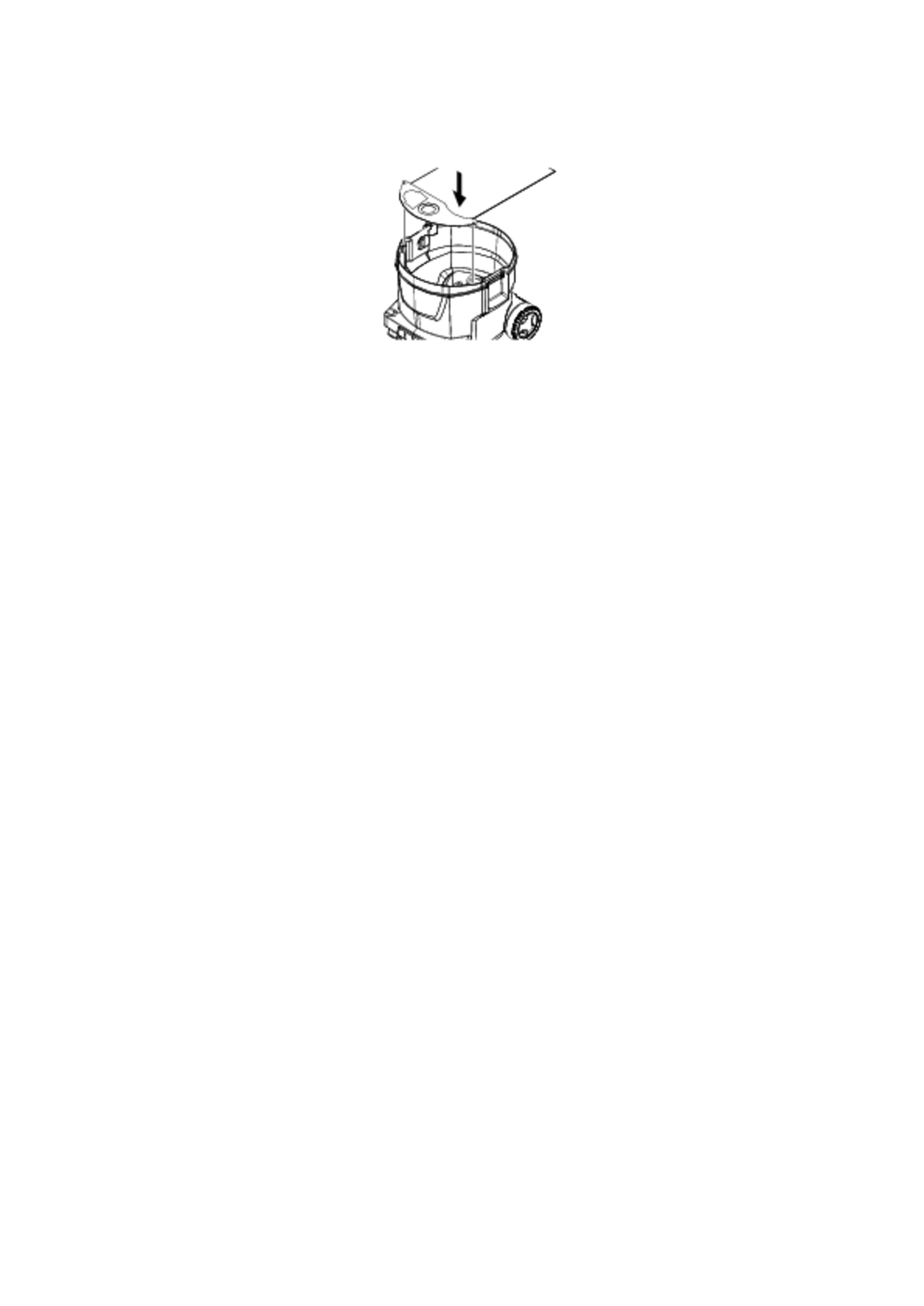

2. Fit the fleece filter bag.

   ---



3. Fit and lock the suction head.

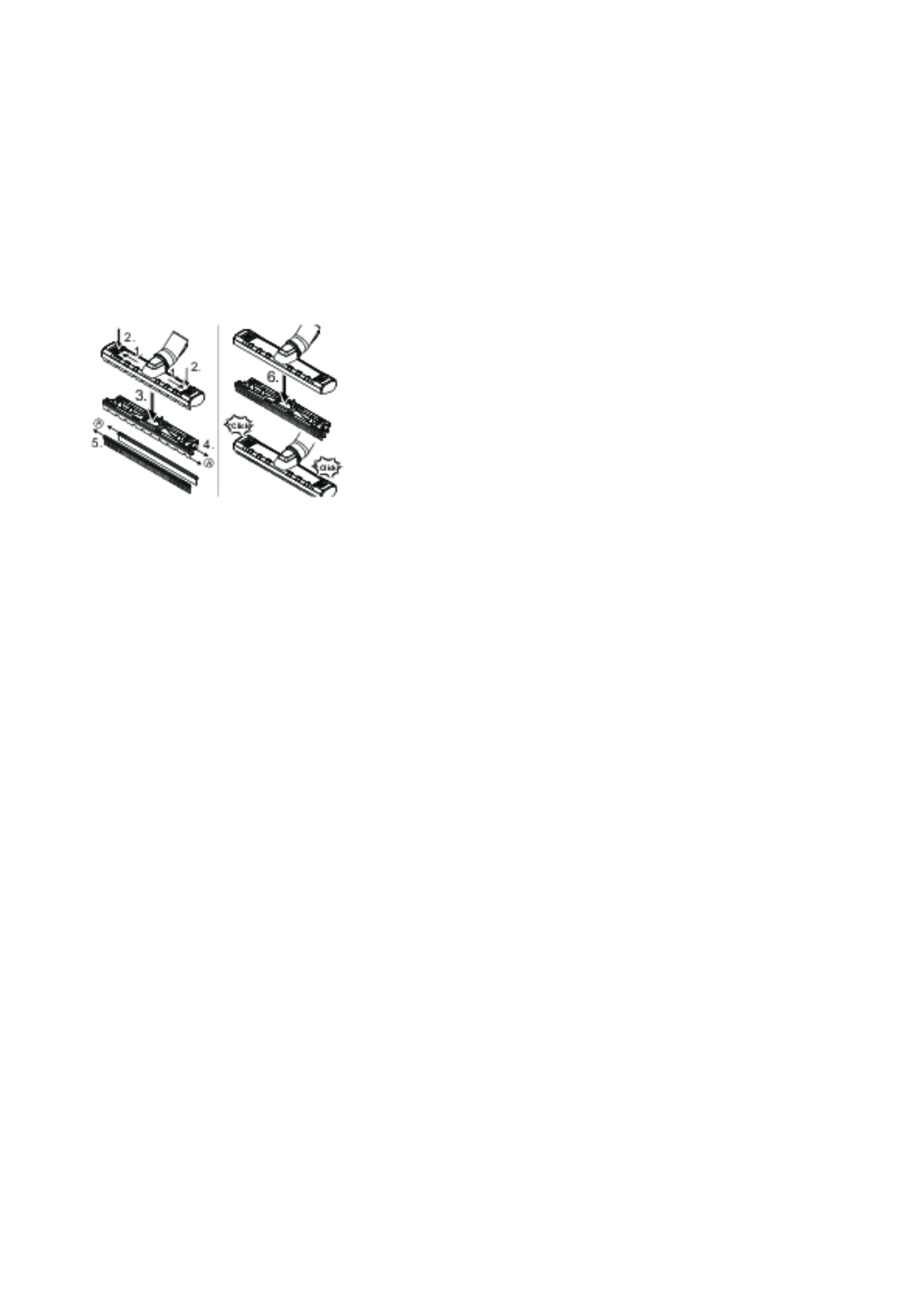

1. Remove the brush strip.

   ---



2. Install the squeegees.

   Note

   The structured side of the squeegees must face outwards.

• The fleece filter bag must always be removed when vacuuming wet substances.

1. Unlock and remove the suction head.

2. Pull the fleece filter bag on the flange up and out.

   ---



3. Fold in the lock latch and seal the fleece filter bag tight.

4. Dispose of the used fleece filter bag in accordance with statutory regulations.

5. Fit and lock the suction head.

• We recommend not using the "Semi-automatic filter dedusting" function button when vacuuming wet dirt with the crevice nozzle or upholstery nozzle (optional) when sucking mainly water out of a container.

• On completion of wet vacuum cleaning: Clean the cartridge filter using the filter dedusting function. Clean the container with a moist cloth and dry it off.

The suction hose is equipped with a clip system. All accessory parts with a nominal width of 35 mm can be connected.

---

1. Connect the mains plug.

2. Set the main switch to the desired program.

1. Plug the mains plug of the power tool into the power socket on the vacuum cleaner. The vacuum cleaner is in Standby mode.

2. Set the main switch to program "2".

   Note

   The vacuum cleaner is automatically switched on and off with the power tool.

   Note

   The vacuum cleaner has a startup delay of up to 0.5 seconds and an after-running time of up to 5 seconds.

   Note

   See the Technical data for the permissible power rating of the power tool.

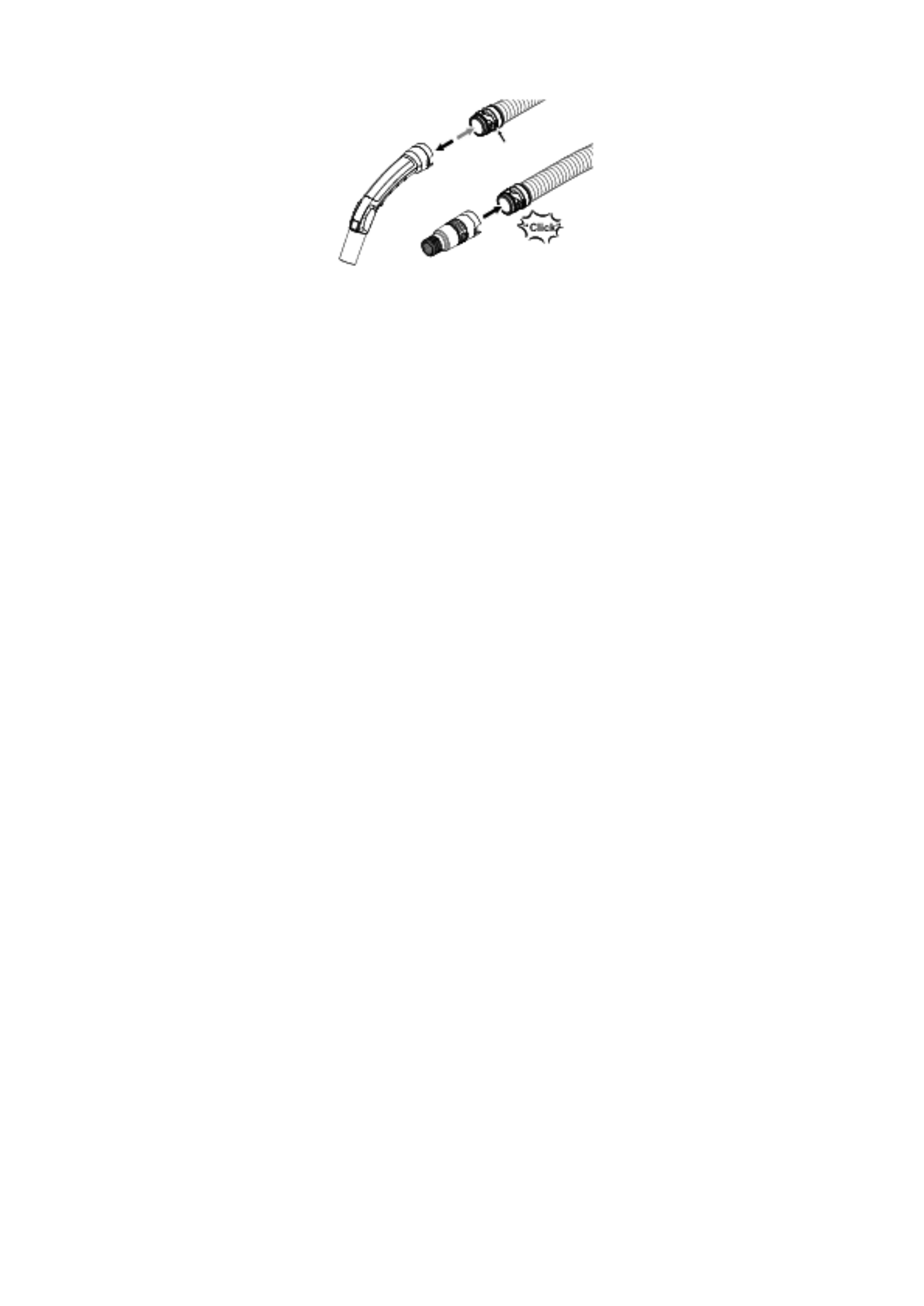

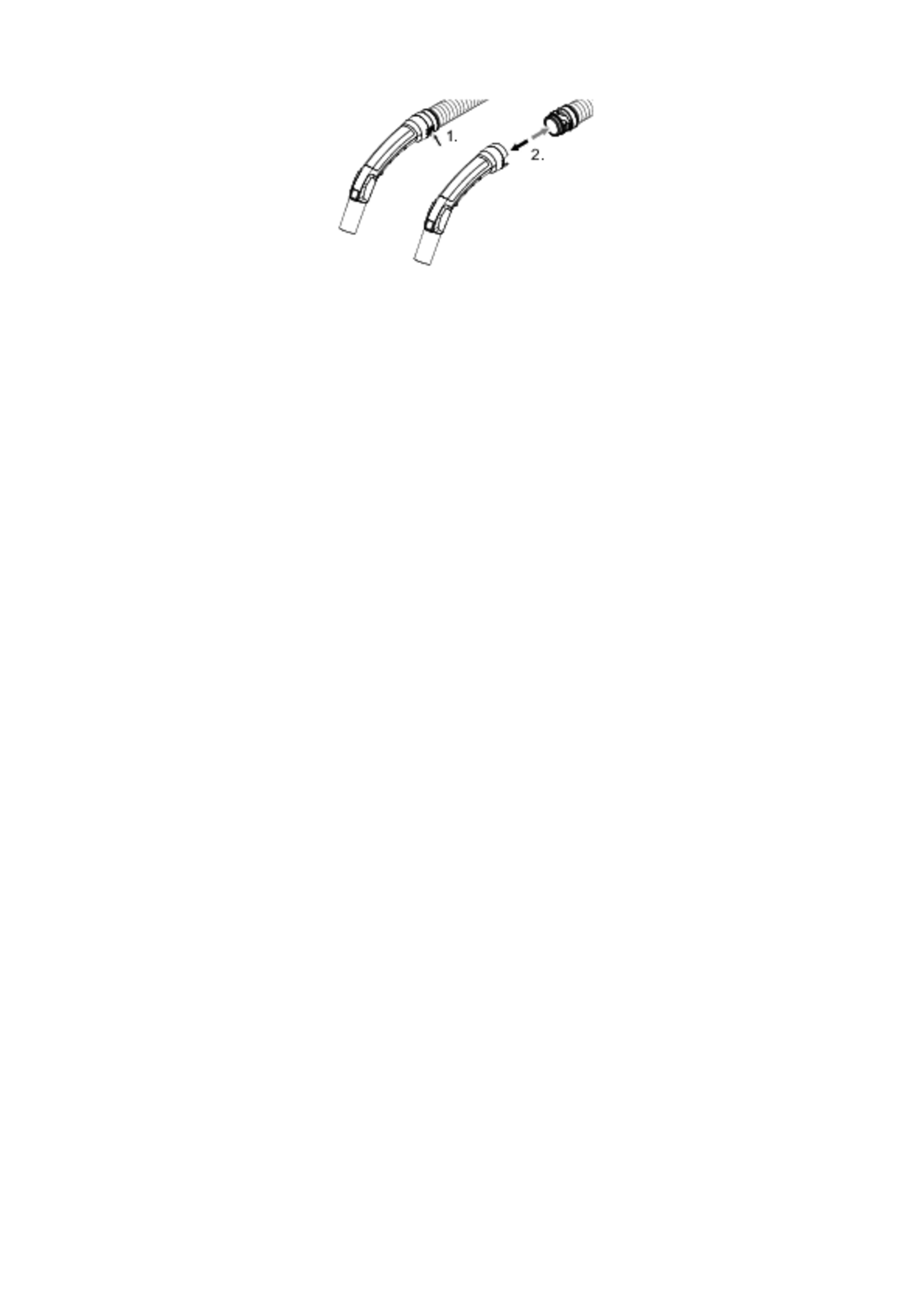

3. Remove the angle piece from the suction hose.

   ---

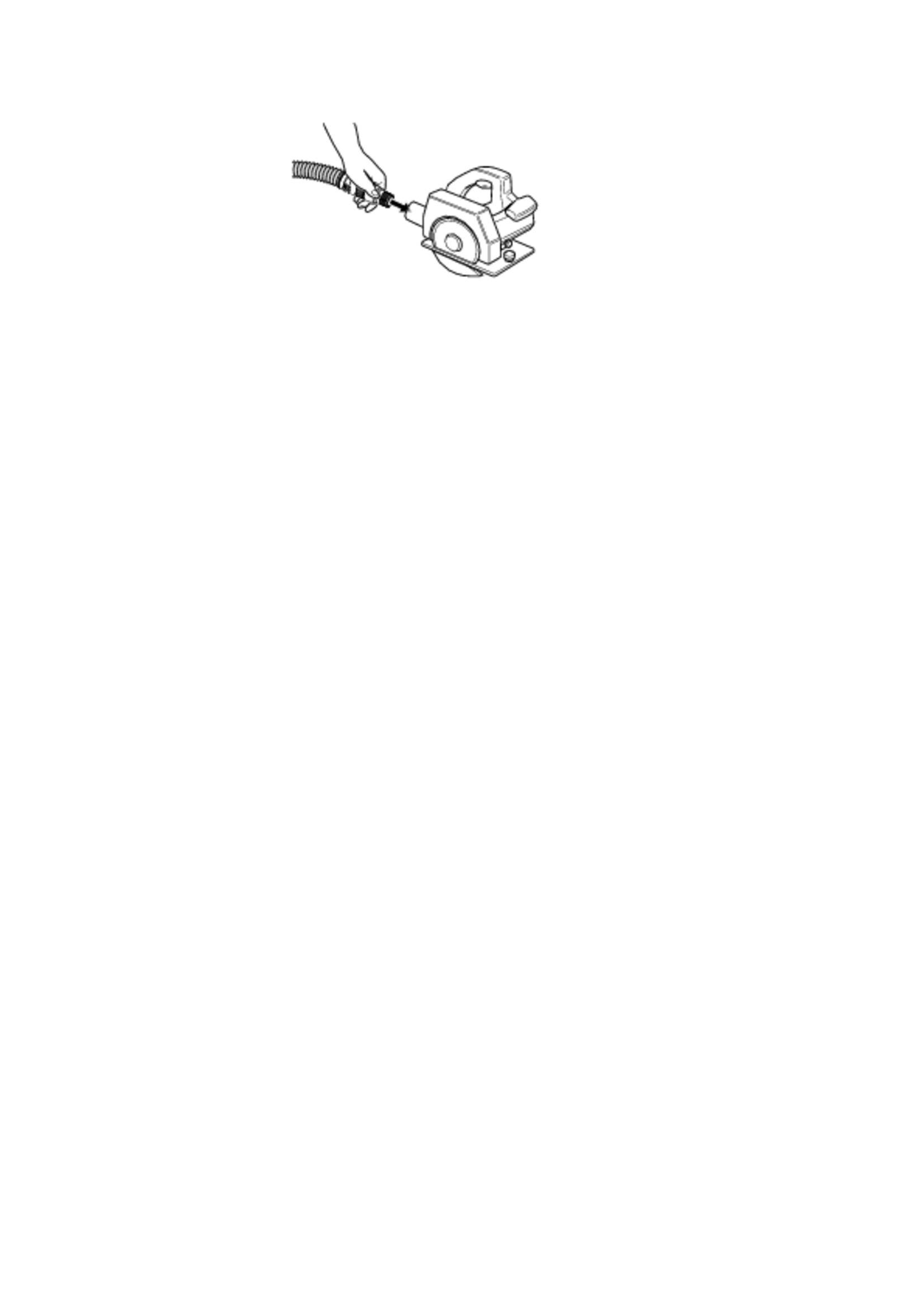

4. Install the tool adapter on the suction hose.

5. Connect the tool adapter to the power tool.

   ---



6. Regulate suction power on the suction control of the tool adapter (variable).

1. Press the semi-automatic filter dedusting button 5x. The cartridge filter is then cleaned by a blast of air (pulsing noise).

2. Power dedusting (for particularly severe contamination of the cartridge filter): Close off the suction pipe or angle piece with your hand and press the semi-automatic filter dedusting button 5x at the same time.

• The suction duct is equipped with a float.

• When the maximum permissible waste water level in the container is reached, the suction volume is interrupted.

1. Switch off the device at the main switch.

2. Empty the container.

1. Press the semi-automatic filter dedusting button 5x.

2. Switch off the device at the main switch.

3. Pull out the mains plug.

1. Empty the container.

2. Vacuum off the inside and outside of the device and clean with a moist cloth.

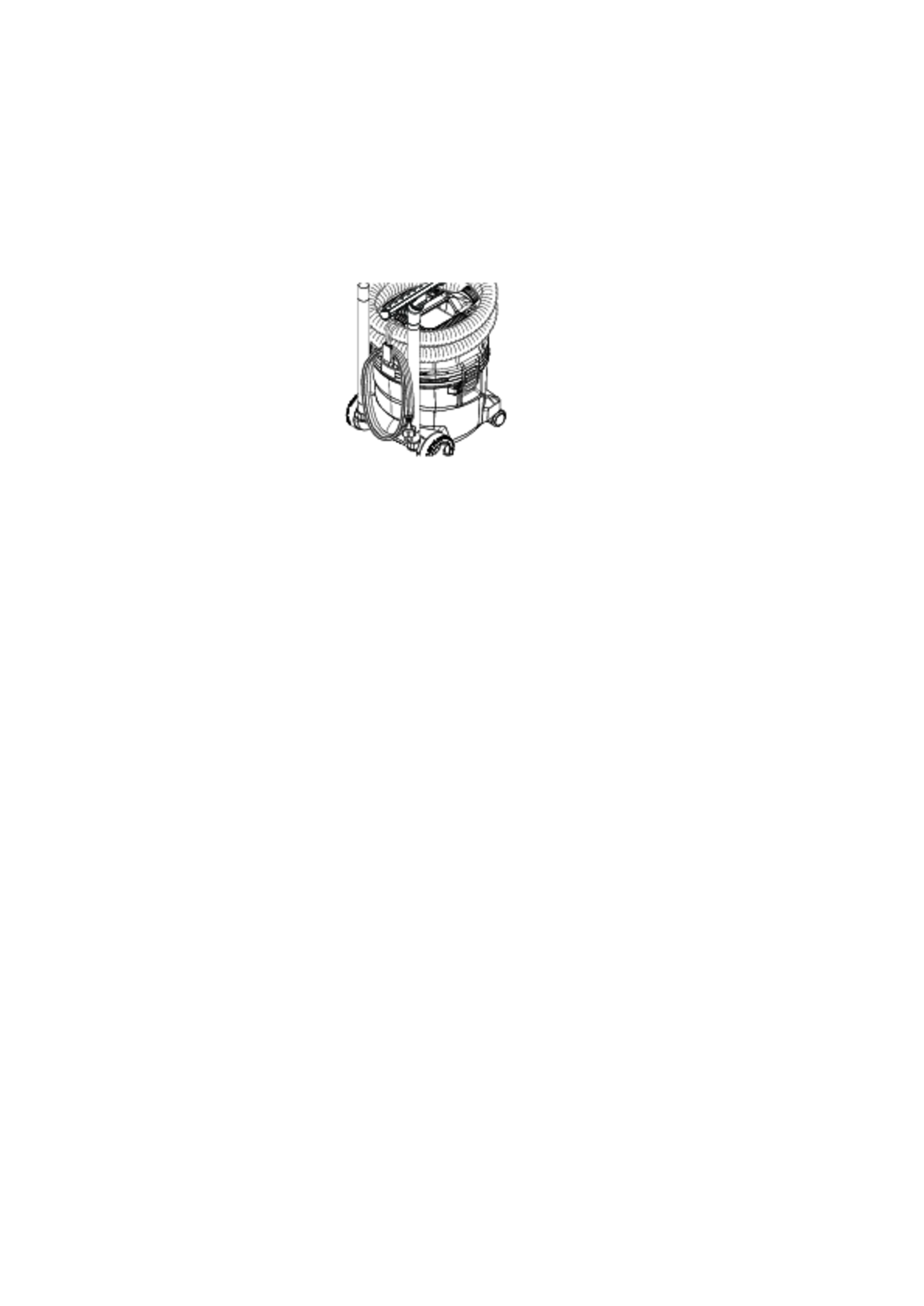

1. Store the suction pipe, suction hose and mains cable as shown in the illustration.

   ---



2. Store the device in a dry room and secure it against unauthorised use.

1. Remove the suction hose with floor nozzle from the support. Carry the device by the carrying handle and suction pipe.

2. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respective valid guidelines.

The device may only be operated indoors.

Dust extraction machines are safety devices for the prevention or elimination of hazards according to the German DGUV regulation 1 (German accident prevention regulation, principles of prevention).

• You can perform basic maintenance and care work yourself.

• Clean the surface of the device and the interior of the container regularly with a moist cloth.

1. Unlock and remove the suction head.

2. Turn the suction head by 180 ° and set it down.

3. Unscrew the securing nut.

4. Remove the cartridge filter.

5. Dispose of the used cartridge filter in accordance with statutory regulations.

6. Install new cartridge filter.

7. Insert and tighten the securing nut.

8. Fit and lock the suction head.

1. Unlock and remove the suction head.

2. Pull the fleece filter bag on the flange up and out.

   ---



3. Fold in the lock latch and seal the fleece filter bag tight.

4. Dispose of the used fleece filter bag in accordance with statutory regulations.

5. Fit the new fleece filter bag.

6. Fit and lock the suction head.

• Suction turbine does not start up

• Suction turbine runs, but the device does not suck

• Suction power decreases

• Escaping dust when vacuuming

• Semi-automatic filter dedusting not working

• Semi-automatic filter dedusting does not switch off

• Semi-automatic filter dedusting cannot be switched on

Remedy:

1. Check the socket and the power supply fuse.

2. Check the mains cable, mains plug, and the socket on the device.

3. Switch on the device.

Cause:

Float closes suction duct

Remedy:

1. Empty the dirt receptacle.

Remedy:

1. Remove any blockages from the suction nozzle, suction pipe, suction hose or cartridge filter.

2. Change the filled fleece filter bag.

3. Press the semi-automatic filter dedusting button 5x with the device switched on.

4. Change the cartridge filter.

Remedy:

1. Check that the cartridge filter is correctly fitted.

2. Change the cartridge filter.

Remedy:

1. Suction hose not connected.

Remedy:

1. Contact Customer Service.

Remedy:

1. Contact Customer Service.

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

• Suction turbine does not start up

• Suction turbine runs, but the device does not suck

• Suction power decreases

• Escaping dust when vacuuming

• Semi-automatic filter dedusting not working

• Semi-automatic filter dedusting does not switch off

• Semi-automatic filter dedusting cannot be switched on

Remedy:

1. Check the socket and the power supply fuse.

2. Check the mains cable, mains plug, and the socket on the device.

3. Switch on the device.

Cause:

Float closes suction duct

Remedy:

1. Empty the dirt receptacle.

Remedy:

1. Remove any blockages from the suction nozzle, suction pipe, suction hose or cartridge filter.

2. Change the filled fleece filter bag.

3. Press the semi-automatic filter dedusting button 5x with the device switched on.

4. Change the cartridge filter.

Remedy:

1. Check that the cartridge filter is correctly fitted.

2. Change the cartridge filter.

Remedy:

1. Suction hose not connected.

Remedy:

1. Contact Customer Service.

Remedy:

1. Contact Customer Service.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Wet/dry vacuum cleaner

Type: 1.378-xxx

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

-

The undersigned act on behalf and under the power of attorney of the company management.

---

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212

Winnenden, 2020/10/01
