Read the original instructions before using the device for the first time and act in accordance with it. Keep the original instructions for future reference or for future owners.

Only use the device in private households.

In accordance with the descriptions and the safety information in these operating instructions, the device is intended for use as vacuum cleaner.

Cold ashes may only be vacuumed with suitable accessories.

Protect the device from rain and do not store it outdoors.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

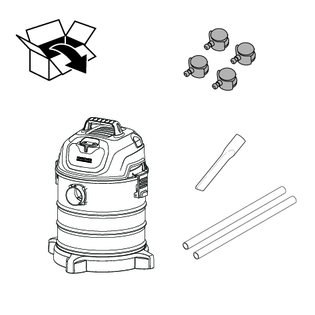

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Read this safety chapter and these original instructions before using the device for the first time. Act in accordance with them. Keep the original instructions for future reference or for future owners.

• In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

• Warnings and information notices attached to the device provide important information for hazard-free operation.

Depending on the model selected, there are differences in the equipment. The specific equipment is described on the device packaging.

---

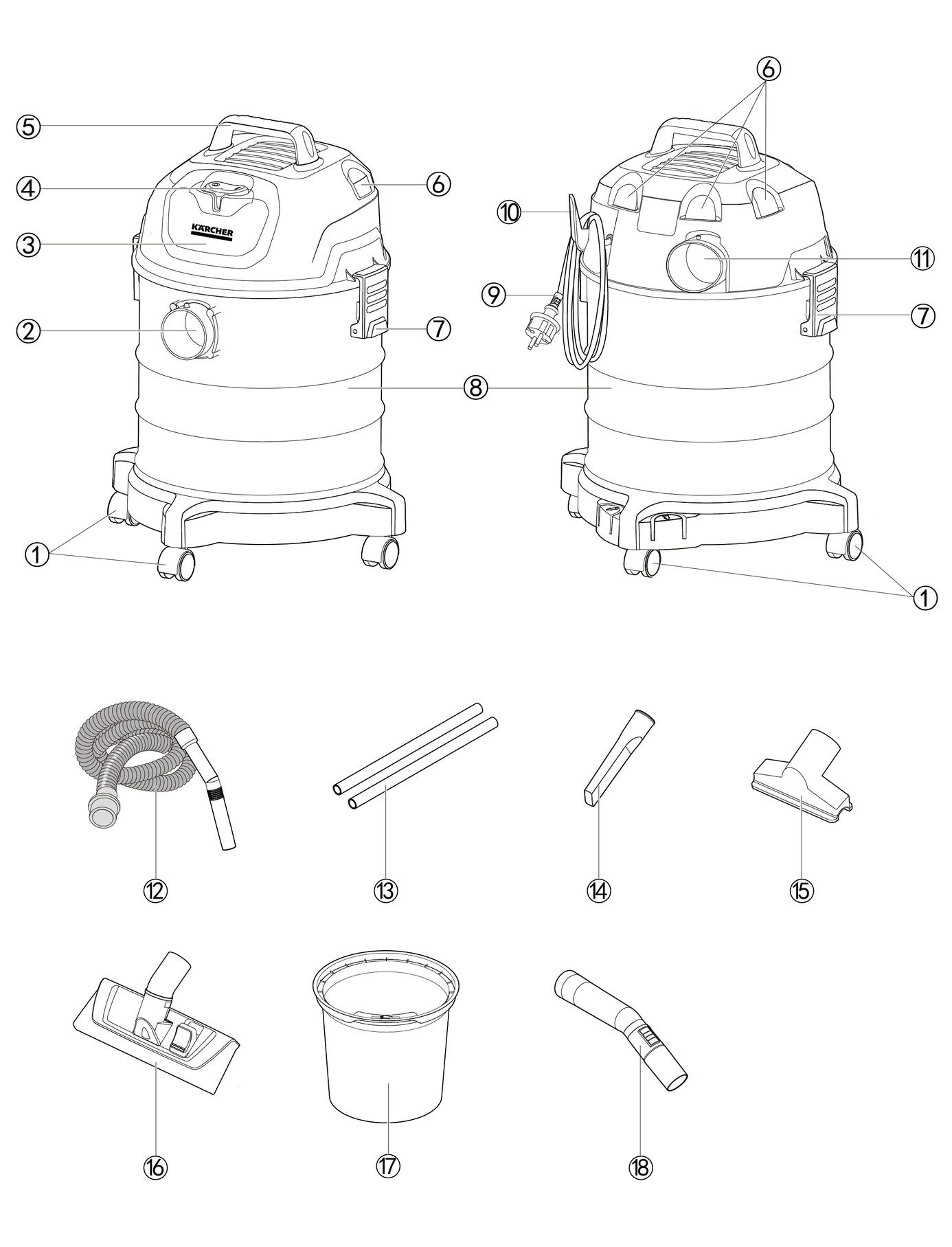

1. Steering roller
2. Suction connection
3. Suction head
4. ON/OFF switch
5. Carry handle
6. Accessories storage
7. Container closure
8. Container
9. Mains connection with mains plug
10. Cable hooks
11. Blowing connection
12. Suction hose
13. Suction pipes
14. Crevice nozzle
15. Upholstery nozzle
16. Floor nozzle
17. Dry filter basket
18. Curved valve pipe

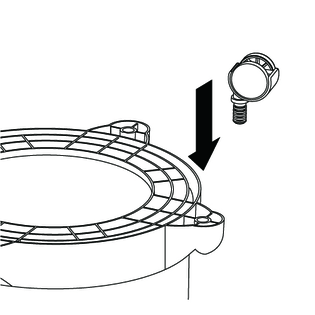

1. Install the steering rollers before initial startup.

   ---



   ---



   ---



   ---

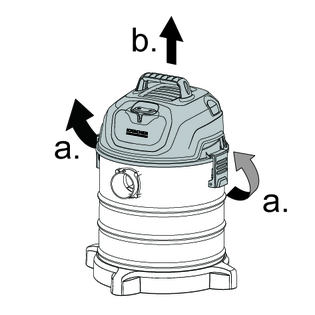

1. Release and remove the suction head.

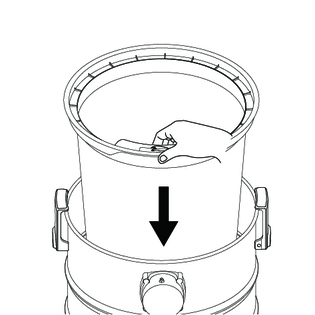

2. Install the dry filter basket and ensure correct seating.

   ---

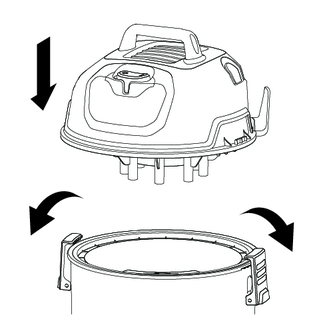

3. Fit and lock the suction head.

   ---

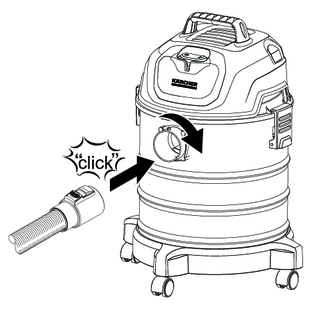

1. Connect the suction hose.

   ---



2. Connect the curved valve pipe to the suction hose.

   ---



3. Connect suction pipe to the curved valve pipe.

   ---



4. Install the nozzles.

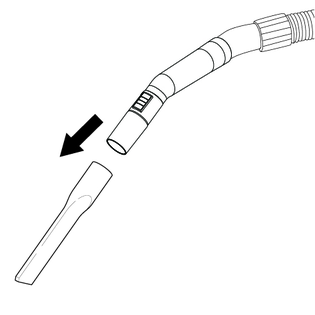

   • Connect the crevice nozzle to the suction pipes.

     This is used for cleaning joints, grooves between doors and windows, tiny slits, etc.

     ---

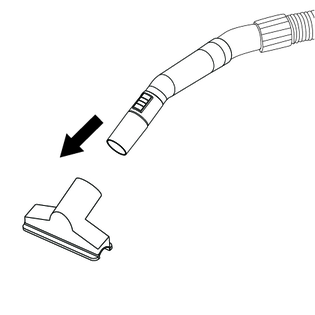

   • Connect the upholstery nozzle to the suction pipes.

     This is used for cleaning sofa etc.

     ---

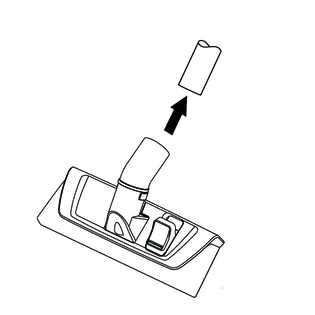

   • Connect the main floor nozzle to suction pipes.

     This is used for cleaning carpet, floors, etc.

     ---

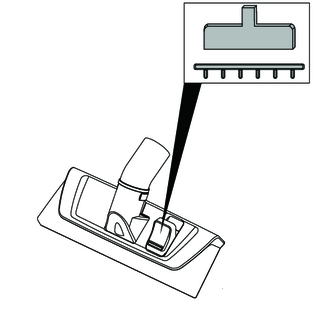

   • Carpets and carpeted floors

     Select the following switch setting:

     ---

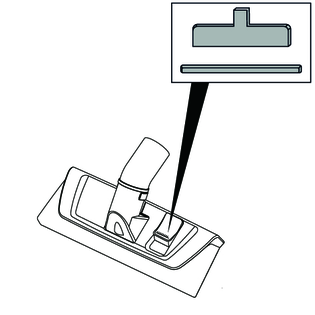

   • Hard surfaces

     Select the following switch setting:

     ---

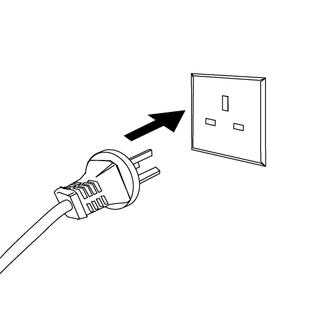

1. Plug the mains plug into the socket.

   ---

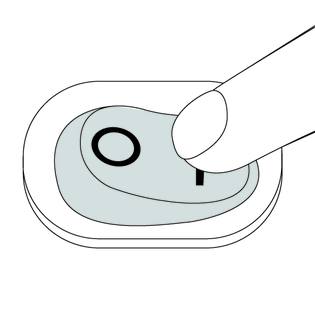

2. Set the ON/OFF switch to the desired position.

   ---



   • Position "1 (ON)": The suction / blowing function is activated.

   • Position "0 (OFF)": The device is switched off.

Depending on the equipment variant, the dry filter basket is included.

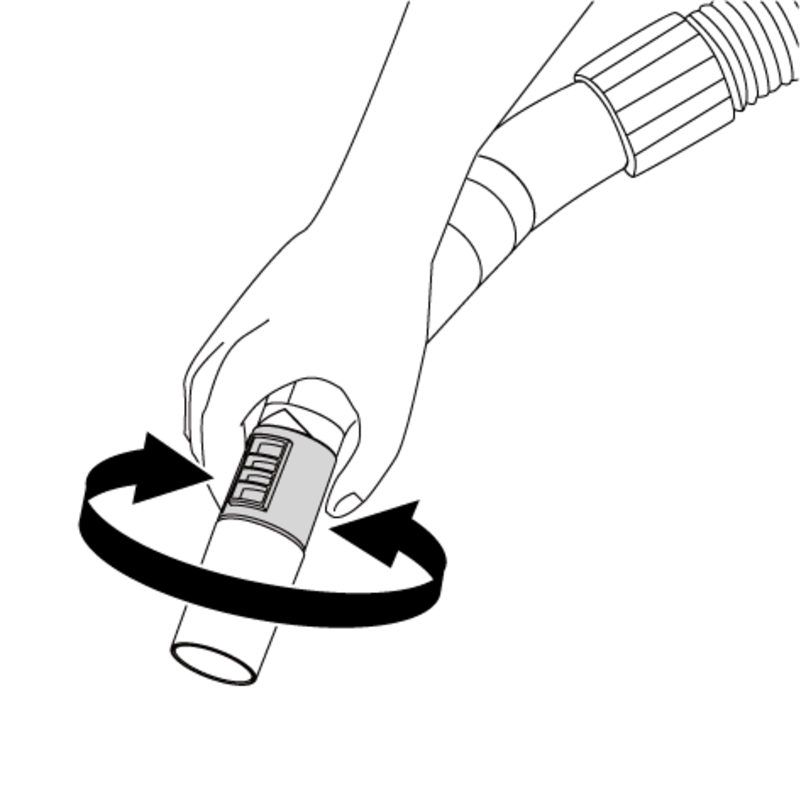

Suction power is reduced by moving the adjustment ring on the curved valve pipe to expose a hole.

---

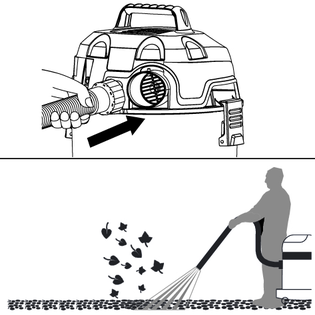

The blower function can be used to clean areas that are difficult to reach or where vacuuming is not possible, e.g. leaves in a gravel bed.

• Insert the suction hose into the blower connection. The blower function is now activated.

  ---



1. Set the trigger to "0 (OFF)".

   The device is switched off.

1. Set the trigger to "0 (OFF)".

   The device is switched off.

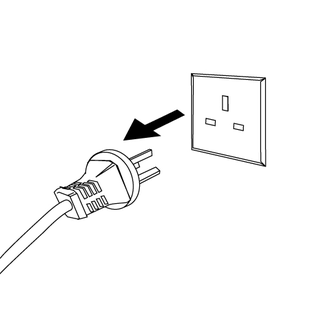

2. Pull out the mains plug.

   ---



3. Remove the device head.

   ---

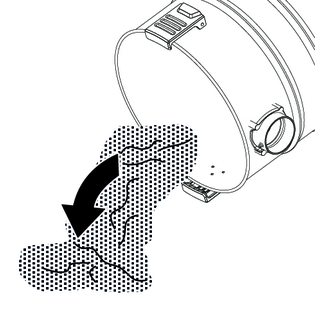

4. Empty the container.

   ---



1. Carry the device by the carrying handle.

2. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the relevant valid guidelines.

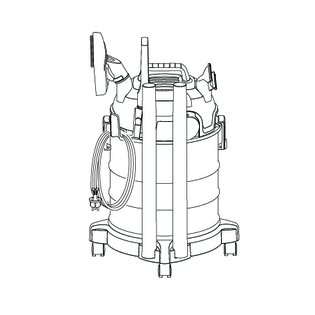

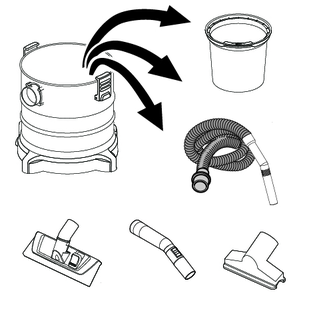

1. Store the suction hose in the container. The suction pipes, floor nozzle, crevice nozzle, upholstery nozzle and the power cable are shown in the following illustration.

   ---



2. Store the appliance in a dry room and keep it away from unauthorized use.

Before doing any work on the appliance:

1. Switch off the appliance.

2. Unplug the power cable.

• Clean the device and plastic accessory parts with a commonly available plastic cleaner.

• Rinse the container and accessories with water, as necessary, and dry them before further use.

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

• Declining suction performance

Cause:

Accessories, the suction hose or the suction pipes are clogged.

Remedy:

• Remove the clog with a suitable aid.

Cause:

The dry filter basket is full.

Remedy:

• Replace the dry filter basket .

Cause:

The dry filter basket is dirty.

Remedy:

• Clean the dry filter basket (see ChapterClean the dry filter basket.)

Cause:

The dry filter basket is damaged.

Remedy:

• Replace the dry filter basket.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

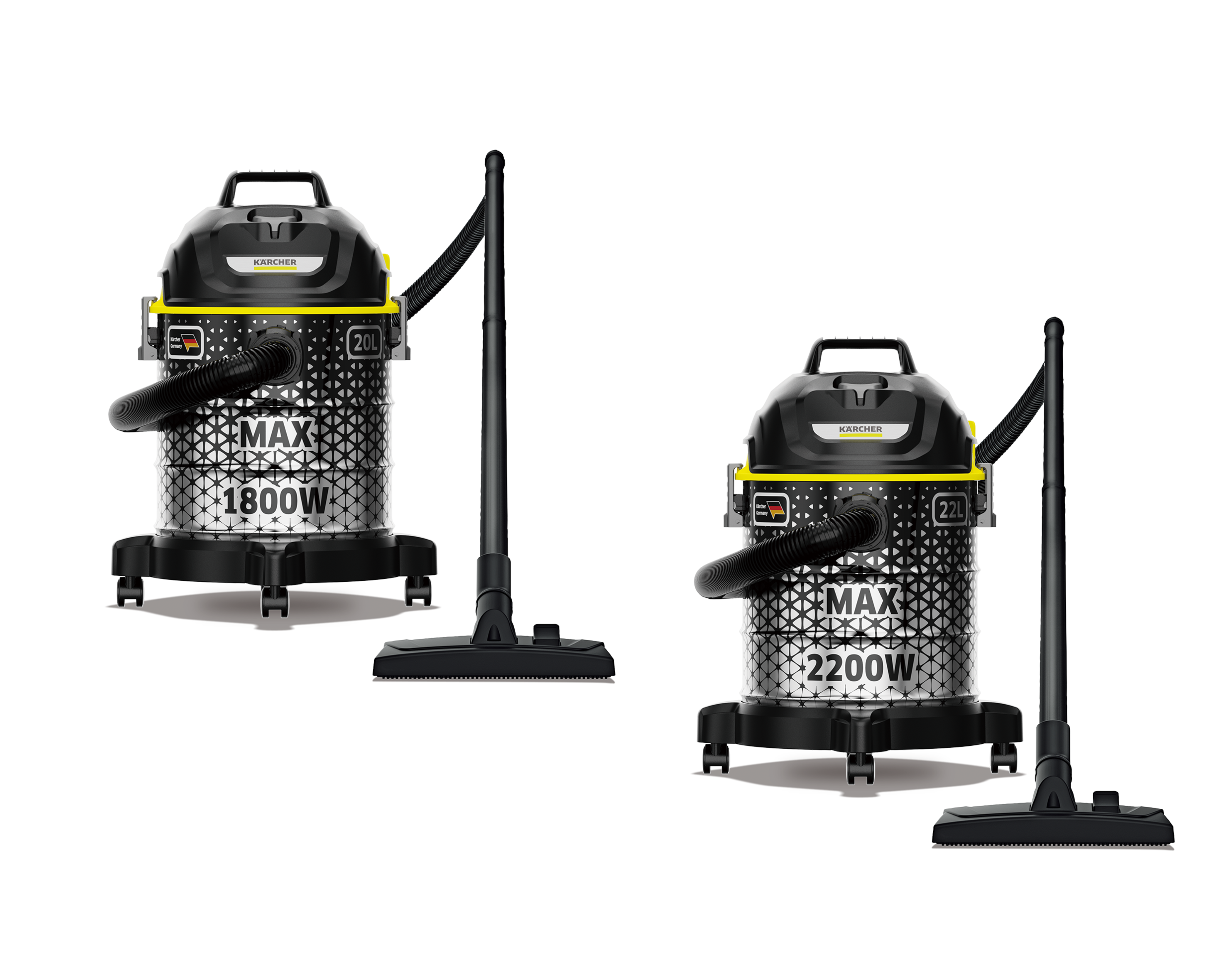

• DVAC 1800

• DVAC 2200
