Read and adhere to these installation instructions before conversion.

Keep these installation instructions for future reference or for future owners.

For safety and warranty reasons, we recommend that you have Kärcher Service perform the assembly, installation and connection.

Keep these installation instructions for future reference or for future owners.

The Equipment Management - Plug-in Connect Module, is used to transmit important status and usage data of a device. These installation instructions describe the installation and the connection.

These installation instructions apply to the attachment kit:

• 2.644-391.0

• Place the device on a level surface.

• Switch off the device.

• Turn the program selection switch to position "0".

• If present: Pull out the KÄRCHER Intelligent Key (KIK) on the control panel.

• Disconnect the battery.

• Determine a suitable position for the Plug-In Connect Module and the antenna in the device (see Determine the position for the Plug-in Connect Module and the antenna).

The following requirement should be met by the position for attachment:

• The Plug-in Connect Module must be fitted in such a way as to ensure the best possible transmission of the device's vibrations.

  Note

  Move the Plug-in Connect Module near the main unit (e.g. turbine, motors) of the device (for an example of the attachment, see Machine integration and installation position).

• The antenna must be glued to the outer wall inside the device.

• The shielding by components such as metal and electronic components as well as e.g. the fresh water tank should be as low as possible.

• The adhesive surface should be as flat as possible.

• The Plug-in Connect Module should only be in contact with the machine at the adhesive surface when the device is ready for operation. The remaining outer surfaces of the module should be exposed.

Further information about the following products can be found on the product detail page of the manufacturer 3M:

• 3M™ VHB™ Surface Cleaner

• 3M™ VHB™ Tape 5952F

1. Clean the adhesive surface with the enclosed cleaning kit.

2. Remove the protective film from the adhesive surface.

3. Attach the Plug-in Connect Module at a suitable place (seeDetermine the position for the Plug-in Connect Module and the antenna).

4. Glue the antenna.

5. Shorten the power supply cable to the device-specific length.

6. Attach the device-specific connector (e.g. ring cable lug) to the open end of the cable.

7. Contact the internal power supply in the device (supply voltage 12-60 V) with connectors.

8. Activate the Plug-in Connect Module with the On/Off button on the HMI.

   Note

   Press the On/Off button on the HMI (approx. 10 seconds) until the blue LED lights up continuously.

9. Start the Plug-in Connect Module via the following link:

   https://support.em.kaercher.com/login

1. Turn the trigger to "0".

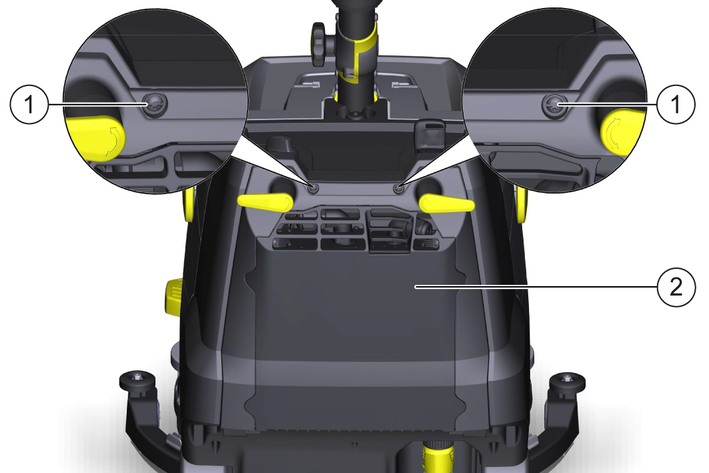

2. Unscrew the M 5x20 screw (2x).

   ---



   1. Screw M 5x20

3. Open the cover.

4. Release and disconnect the battery plug connector.

   ---



   1. Battery plug connector
   2. Battery

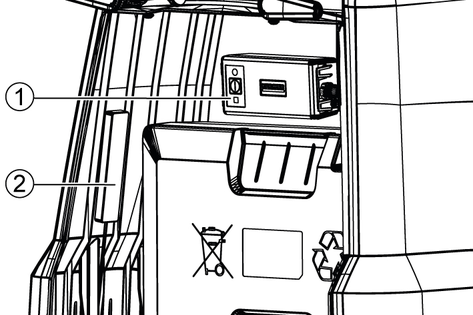

5. Attach the Plug-in Connect Module and the antenna as shown.

   ---



   1. Plug-in Connect Module
   2. Antenna

   ATTENTION

   Risk of damage to the cable!

   The cable between the antenna and the Plug-in Connect Module can be damaged by crushing or kinking.

   Do not place heavy objects on the cable and do not pinch it.

   Do not pull, bend, alter or wrap the cable.

6. Strip the cable (approx. 100 mm).

7. Place the ring cable lug D4-1 on the wire of the cable and then crimp it with a crimping tool (2x).

8. Remove the plastic cover from the control board.

   ---



   1. GND:X13 (negative pole or earth point)
   2. Control board
   3. X9 (positive pole)

9. Attach the ring cable lugs with the flattened side:

   1. Red wire (positive pole): Slot X9

   2. Black wire (negative pole or ground point): Slot GND:X13

10. Reinsert the battery into the device and connect it accordingly.

11. Secure the cable to the wiring harness with the cable ties and route it accordingly.

12. Press and hold the On/Off button on the Plug-in Connect Module for approx. 10 seconds.

    Note

    The LED must then light up continuously.

13. Close the cover again.

14. Screw in the M 5x20 screw (2x).

1. Turn the trigger to "0".

2. Unscrew the M 5x20 screw (2x).

   ---



   1. Screw M 5x20

3. Open the cover.

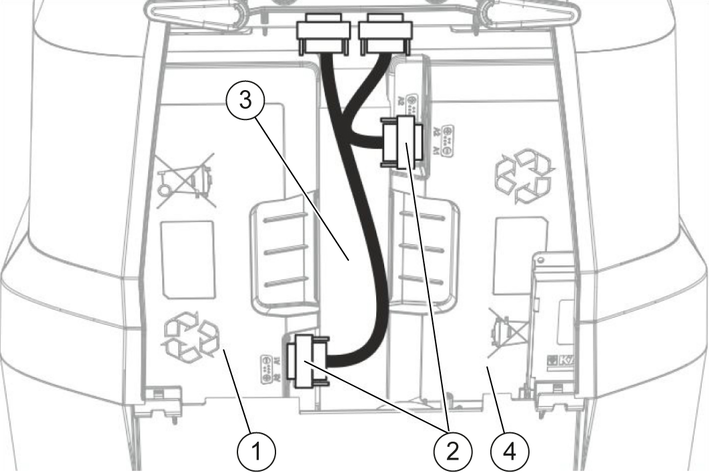

4. Release and disconnect the battery plug connector (4x).

   ---



   1. Battery, left
   2. Battery plug connector
   3. Battery spacer
   4. Battery, right

5. Remove the battery spacer.

6. Remove the left battery (view direction: in the direction of travel).

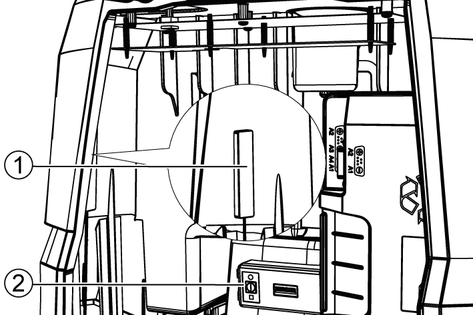

7. Bond the Plug-in Connect Module and the antenna as shown.

   ---



   1. Antenna
   2. Plug-in Connect Module

   Note

   The antenna must be attached on the inside, to the left of the RJ 45 adapter.

   ---

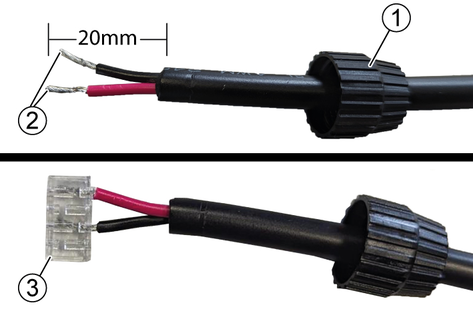

   1. Screw cap
   2. Cable
   3. Wiring cap

8. Strip the cable (20 mm).

9. Put the screw cap on the cable.

10. Insert into the wiring cap.

    1. Pin 1: (WhiteOrange/Whitegreen) positive pole (red cable).

    2. Pin 2: (blue) negative pole (black cable).

    ---



    1. Screw cap
    2. Wiring cap
    3. RJ45 plug

11. Press the wiring cap onto the plug.

12. Close the plug and screw it with the screw cap

    ---

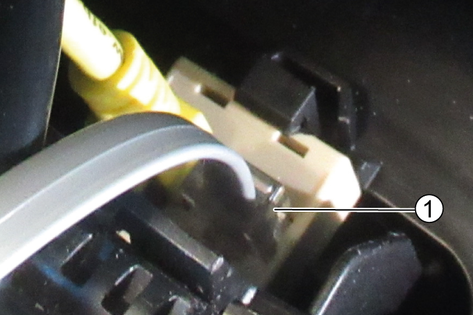

    1. RJ45 plug

    ATTENTION

    Risk of damage to the cable!

    The cable between the antenna and the Plug-in Connect Module can be damaged by crushing or kinking.

    Do not place heavy objects on the cable and do not pinch it.

    Do not pull, bend, alter or wrap the cable.

13. Place the ring cable lug D4-1 on the wire of the cable and then crimp it with a crimping tool (2x).

14. Remove the plastic cover from the control board.

15. Attach the ring cable lugs with the flattened side:

    1. Red wire (positive pole): Slot X3

    2. Black wire (negative pole or ground point): Slot X4

16. Insert the battery plug connector of the battery on the right and tighten it (2x).

    Note

    The Plug-in Connect Module must be checked for full functionality before inserting the left battery.

17. Press and hold the On/Off button on the Plug-in Connect Module for approx. 10 seconds.

    Note

    The LED must then light up continuously.

18. Reattach the cover.

19. Fit the left battery.

20. Insert the battery spacer between the batteries.

21. Insert the battery plug connector of the battery on the left and tighten it (2x).

22. Close the cover.

23. Screw in the M 5x20 screw (2x).

1. Turn the programme selection switch to "OFF".

2. Remove the waste water tank.

3. Bond the antenna on the right inside (in driving direction) of the fresh water tank behind the battery.

4. Bond the Plug-in Connect Module on the front inside (in travel direction) of the fresh water tank.

   ---



   1. Plug-in Connect Module
   2. Antenna

   Note

   The Plug-in Connect Module must not be placed higher than the lower edge of the waste water tank (see diagram above).

   ATTENTION

   Risk of damage to the cable!

   The cable between the antenna and the Plug-in Connect Module can be damaged by crushing or kinking.

   Do not place heavy objects on the cable and do not pinch it.

   Do not pull, bend, alter or wrap the cable.

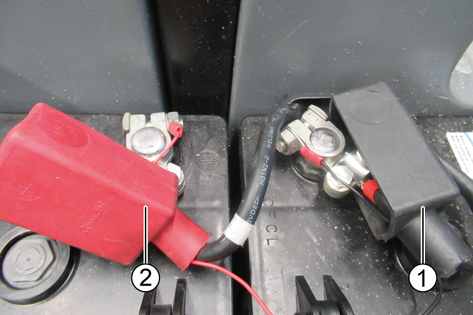

5. Remove the pole cap (2x).

   ---



   1. Pole cap (negative pole or earth point)
   2. Pole cap (positive pole)

6. Release the nut on the battery terminal (2x).

7. Strip the cable (approx. 150 mm).

8. Place the ring cable lug D8-1 on the wire of the cable and then crimp it with a crimping tool (2x).

   ---



   1. Pole cap
   2. Ring cable lug
   3. Nut
   4. Battery terminal

9. Pull the ring cable lug through the opening in the pole cap (2x).

10. Attach the ring cable lug with the flattened side (pointing towards the battery terminal) and secure it with the nut (2x).

    Note

    The red cable must be connected to the positive pole and the black cable to the negative pole or earth point.

11. Press and hold the On/Off button on the Plug-in Connect Module for approx. 10 seconds.

    Note

    The LED must then light up continuously.

12. Fit the pole cap (2x).

13. Fit the waster water tank.

The initial startup takes place via the "EQUIPMENT MANAGEMENT ADMIN VIEW" portal

Link to portal: https://support.em.kaercher.com/

QR code to portal:

In case of questions or malfunctions, please contact the following e-mail address: info.em@karcher.com

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Equipment Management Plug-in Connect

Type: 2.644-391.0

2014/53/EU

2011/65/EU

EN 60335-1

EN 623681-1: 2014

EN 62311: 2008

EN IEC 63000: 2018

EN 301 908-1 V15.1.1

EN 301 511 V12.5.1

EN 300 328 V2.2.2

EN 301 489-52 V1.2.1

-

The signatories act on behalf of and with the authority of the company management.

---

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212

Winnenden, 2023/03/01
