Plug-In Connect Modul

0.084-152.0 (07/24)

Read and adhere to these installation instructions before conversion.

Keep these installation instructions for future reference or for future owners.

DANGER

Risk of asphyxiation. Keep packaging film out of the reach of children.

WARNING

Only use the device for its proper use. Take into account the local conditions and beware of third parties, in particular children, when working with the device.

WARNING

The device is not intended for use by persons with restricted physical, sensory or mental abilities or those lacking in experience and / or lacking in knowledge.

WARNING

Only people who have been instructed on how to use the device, or have proven their ability to operate it, and have been explicitly instructed to use it, must use the device.

WARNING

Children must not operate the device.

WARNING

Children must be supervised to prevent them from playing with the appliance.

CAUTION

Safety devices are provided for your own protection. Never modify or bypass safety devices.

Note

The antenna must be attached to the machine in such a way that the machine operator is 20 cm away from the antenna.

DANGER

Indication of an imminent threat of danger that will lead to severe injuries or even death.

WARNING

Indication of a potentially dangerous situation that may lead to severe injuries or even death.

CAUTION

Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

Indication of a potentially dangerous situation that may lead to damage to property.

ATTENTION

Risk of damage due to improper installation.

Improper installation or connecting up of the attachment can damage the attachment as well as the vehicle or the machine. Malfunctions and failures can occur on the attachment and the vehicle or machine.

Have the assembly, installation and connecting up of the attachment carried out only by a qualified specialist.

ATTENTION

Risk of damage due to electrostatic discharge (ESD)!

Electrostatic discharge (ESD) can damage electronic components.

Take suitable measures to discharge the electrostatic charge before all work on the device electronics.

ATTENTION

Risk of damage due to sharp-edged objects and soiling!

Sharp-edged or dirty objects can cause damage such as scratches, notches and deformation when coming into contact with device components. Dirty tools, cloths and work surfaces can cause irreversible soiling and discolouration.

Use only suitable, undamaged and clean tools and auxiliary materials and exercise care when working. Place components and devices only on clean, padded surfaces.

For safety and warranty reasons, we recommend that you have Kärcher Service perform the assembly, installation and connection.

Keep these installation instructions for future reference or for future owners.

Note

Also adhere to the operating instructions for the vehicle or device in which the attachment is installed.

Note

Canada

This device contains licence-exempt transmitters/receivers that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference
This device must accept any interference, including interference that may cause undesired operation of the device.

USA:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance voids the user's authority to operate this equipment.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

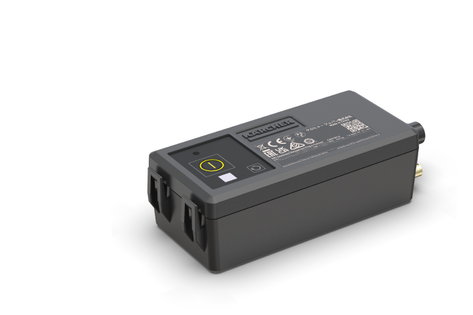

The Equipment Management - Plug-in Connect Module, is used to transmit important status and usage data of a device. These installation instructions describe the installation and the connection.

These installation instructions apply to the attachment kit:
