Read and follow these original operating instructions and the enclosed safety instructions chapter before using the device for the first time. Proceed accordingly.

Keep the original operating instructions for future reference or for future owners.

With the KÄRCHER Home & Garden app, you benefit from the following advantages when using your device:

• Application tips & expert knowledge

• Product information, overview of accessories and operating instructions

• Support and service contact

• Online shop - exclusive offers and much more

Download the KÄRCHER Home & Garden app from your app store and conveniently register your product.

Your device must be registered in order to help with any questions or issues that you have. You can register your device at www.karcher-register.com if located in the U.S.A., www.karcher.com/ca if located in Canada, or www.karcher.com/mx if located in Mexico.

In the case of a warranty claim, you can contact customer support. Please see the contact information listed below for either the USA, Canada or Mexico. You MUST provide your proof of purchase in order to file a warranty claim either via e-mail, phone or fax.

You can contact our Customer Service department by phone at 1-800-537-4129 or via the website at www.karcher-help.com.

You can contact our Customer Service department by phone at 1-800-465-4980 or via the website at www.karcher.com/ca/support.

You can contact our Customer Service department by phone at 01-800-024-1313 or via the website at www.karcher.com/mx.

When using this product basic precautions should always be followed, including the following:

This electric pressure washer is equipped with a Class A ground-fault circuit-interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock.

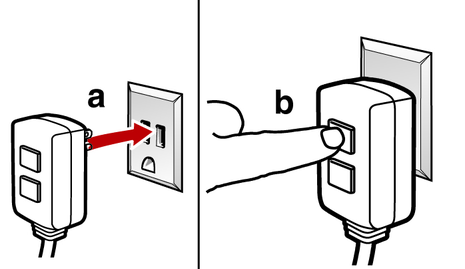

The Consumer Product Safety Commission recommends that you test all GFCI's once a month. Since the frequency of pressure washer use varies, we recommend that you test the GFCI as part of your startup procedure each time you use your pressure washer. It might need to be reset before working with the pressure washer. To learn how to perform the GFCI test and how to reset it, visit http://www.karcher-help.com and search for GFCI for further instructions.

DO NOT USE IF GFCI FAILS TEST.

---

NOTE: The actual appearance of the GFCI may be different from this illustration.

In a double-insulated product, two systemsof insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace.A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. The symbol “” may also be marked on the product.

• Dirt in the feed water will damage the unit. To avoid this risk, we recommend fitting a water filter.

• Never use the pressure washer to draw in water contaminated with solvents, e.g. paint thinners, gasoline, oil etc.

• Always prevent debris from being drawn into the unit by using a clean water source.

The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this pressure washer.

Warning information should be emphasized and understood.

If the operator is not fluent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.

Owner and/or user must study and maintain the manufacturers’ instructions for future reference.

The power switch stops you from operating the device unintentionally.

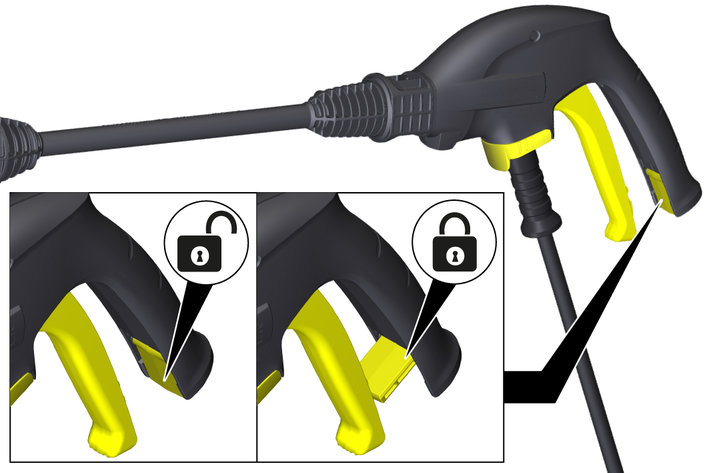

The lock blocks the lever of the high-pressure gun and prevents the device from starting unintentionally.

If the lever on the high-pressure gun is released, the pressure switch switches the pump off and the high-pressure jet stops. If the lever is pressed, the pump switches on again.

For home use only!

The high-pressure cleaner is designed for cleaning machines, vehicles, structures, tools, facades, terraces, garden tools, etc. with high-pressure water streams.

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

The scope of delivery for the appliance is shown on the packaging. During unpacking, check the contents for completeness. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Fit the supplied loose parts onto the device before starting up the device.

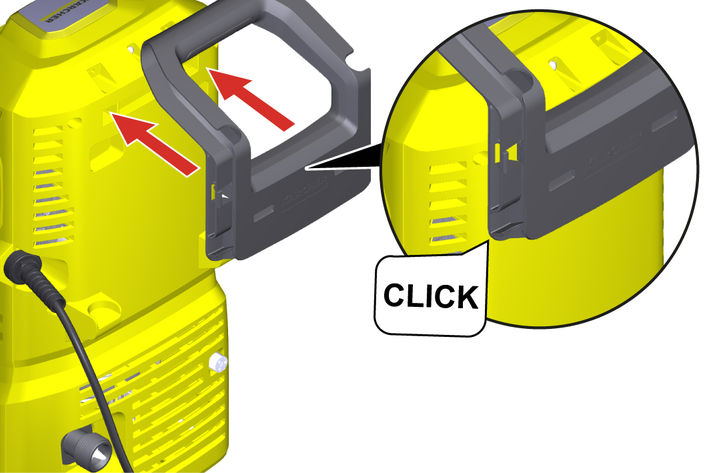

1. Fit the carrying handle so that it latches into place.

   ---

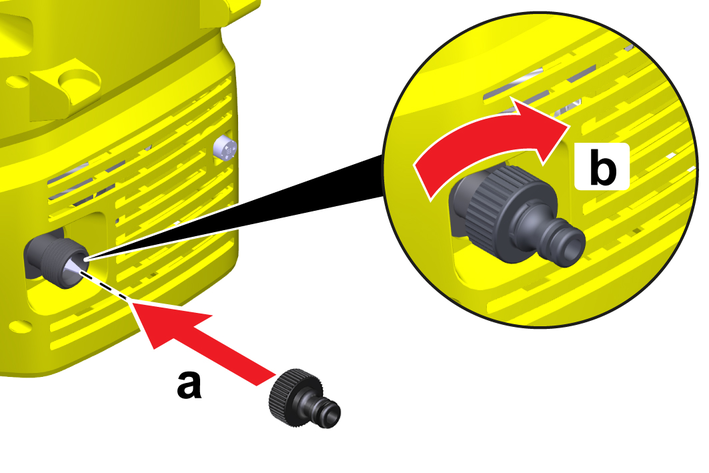

1. Screw the coupling for the water connection onto the water connection of the device.

   ---



1. Place the device on a level, horizontal surface.

2. ATTENTION

   Risk of damage during operation with wound-up high-pressure hose!

   Damage on the high-pressure hose.

   Unwind the high-pressure hose completely and lay it out without knots, loops or twists before operating the device.

   Unwind the high-pressure hose completely and lay it out without knots, loops, or twists.

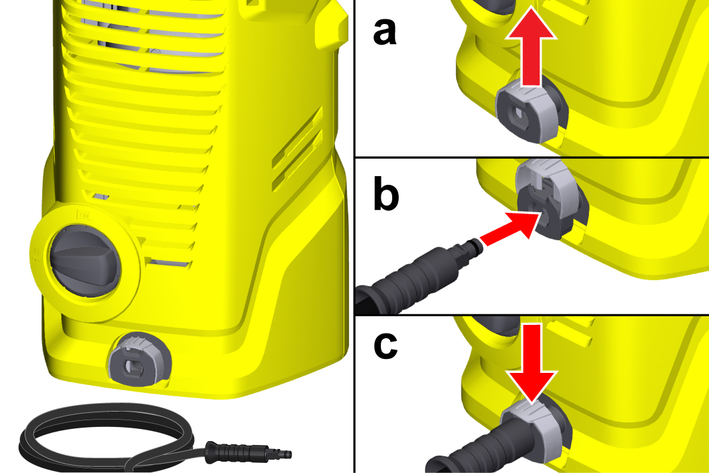

3. Connect the high-pressure hose to the device.

   1. Pull up the clamp on the coupling.

   2. Insert the high-pressure hose into the coupling.

   3. Press down the clamp on the coupling.

      ---

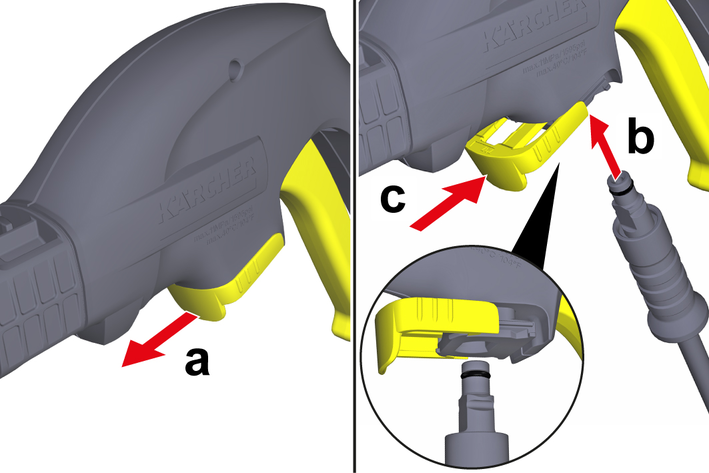

4. Connect the high-pressure hose to the high-pressure gun.

   1. Pull out the clamp on the high-pressure gun.

   2. Insert the high-pressure hose.

   3. Press the clamp in until it latches into place.

      ---



5. Check for a secure connection by pulling on the high-pressure hose.

6. Plug the mains plug into a mains socket.

For connected loads, see type plate or chapter Technical data.

Observe the instructions of the water supply company.

1. Fit the supplied hose coupling to the end of the garden hose.

2. Plug the garden hose onto the water connection coupling.

3. Connect the garden hose to the water line.

4. Open the water tap completely.

   ---

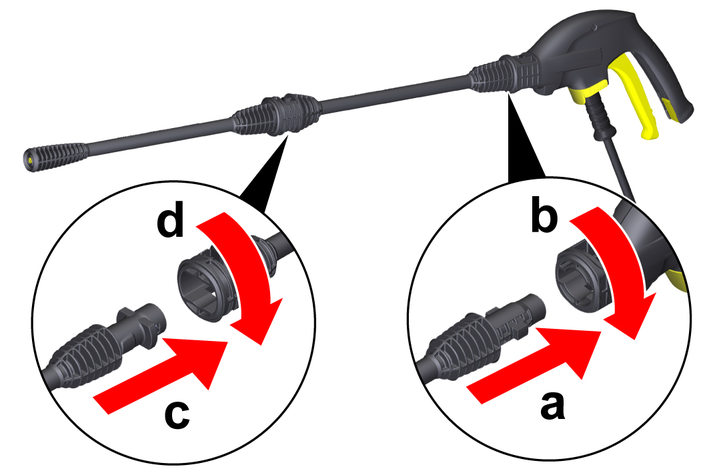

1. Connect the high-pressure gun to the spray lances.

   1. Insert the spray lance extension into the high-pressure gun.

   2. Lock it by turning it 90°.

   3. Insert the spray lance with the high-pressure nozzle into the spray lance extension.

   4. Lock it by turning it 90°.

   ---



2. Switch the device on ("I/ON").

3. Unlock the lever of the high-pressure gun.

4. Press the lever of the high-pressure gun.

   The device switches on.

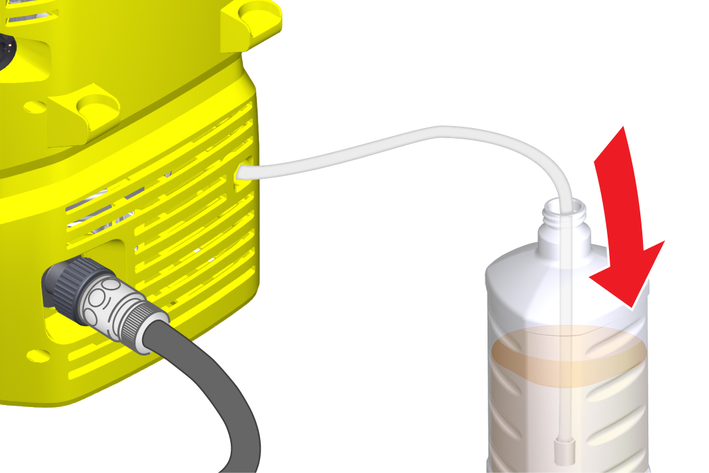

1. Pull the detergent suction hose out of the casing to the desired length.

2. Hang the detergent suction hose in a container with detergent solution.

   ---



3. Separate the spray lance with the high-pressure nozzle from the spray lance extension and only work with the spray lance extension mounted.

   The detergent solution is mixed with the water stream during operation.

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure jet.

1. Rinse the device with clean water for approx. 30 seconds.

1. Release the lever of the high-pressure gun.

   When the lever is released, the device switches off. The high-pressure in the system is maintained.

2. Lock the lever of the high-pressure gun.

   ---



3. For work breaks longer than 5 minutes, switch off the device "0/OFF".

1. Release the lever of the high-pressure gun.

2. Close the water tap.

3. Press the lever of the high-pressure gun for 30 seconds.

   The pressure in the system is released.

4. Release the lever of the high-pressure gun.

5. Lock the lever of the high-pressure gun.

6. Switch off the device "0/OFF".

7. Disconnect the device from the water supply.

8. Pull the mains plug out of the outlet.

1. Lift the device by the carrying handle and carry it.

1. Secure the device against shifting and tipping.

1. Place the device on a level surface.

2. Disconnect the spray lance with the high-pressure nozzle from the spray lance extension.

3. Disconnect the spray lance extension from the high-pressure gun.

4. Stow the spray lance and the spray lance extension in the appropriate storage options.

5. Disconnect the high-pressure hose from the device.

6. Disonnect the high-pressure hose from the high-pressure gun.

7. Store the high-pressure hose and the high-pressure gun on the device.

8. Stow the mains connection cable on the device.

Observe the additional notes before storing the device for a longer period of time, see chapter Care and Service.

1. Disconnect the water supply from the device.

2. Remove the high-pressure hose from the device.

3. Switch the device on ("I/ON").

4. Wait for a maximum of 1 minute until no more water escapes from the high-pressure connection.

5. Switch off the device ("0/OFF").

6. Store the device and accessories in a frost-protected room.

The device is maintenance-free, so it is not necessary to carry out regular maintenance work.

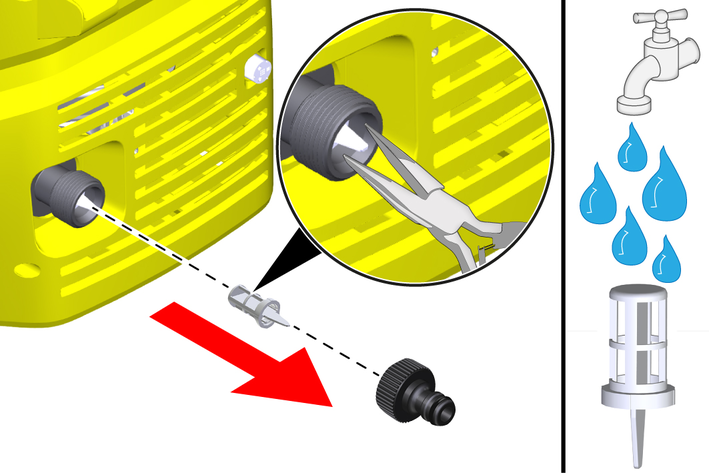

Clean the sieve in the water connection if necessary.

1. Unscrew the coupling on the water connection.

2. Pull out the sieve.

   ---



3. Clean the sieve under running water.

4. Insert the sieve into the water connection.

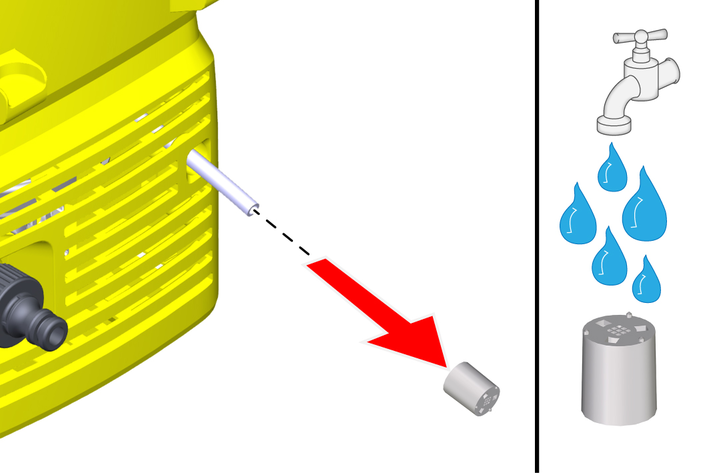

Clean the detergent filter before prolonged storage.

1. Remove the filter from the detergent suction hose.

2. Clean the filter under running water.

   ---



Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorized Customer Service.

• Device is not running

• Device does not reach required pressure

• Strong pressure fluctuations

• Device leaking

• Detergent is not sucked in

Remedy:

1. Press the lever of the high-pressure gun.

   The device switches on.

2. Check if the voltage specified on the type plate matches the voltage of the power source.

3. Check the mains connection for damage.

Cause:

The water supply is too low.

Remedy:

1. Open the water tap fully.

2. Check the water inlet for an adequate flow rate.

Cause:

The sieve in the water connection is dirty.

Remedy:

1. Pull the sieve in the water connection out using flat pliers.

2. Clean the sieve under running water.

   ---



Cause:

Air is in the device.

Remedy:

1. Vent the device:

   1. Switch on the device without the spray lance with high-pressure nozzle for a maximum of 2 minutes.

   2. Press the lever of the high-pressure gun and wait until the water escaping from the spray lance extension is free of air bubbles.

   3. Connect the spray lance with the high pressure nozzle.

Remedy:

1. Cleaning the high-pressure nozzle:

   1. Remove contamination from the nozzle drill with a needle.

   2. Rinse the high-pressure nozzle with water from the front.

2. Check the water supply volume.

Remedy:

1. A slight leakage in the device is due to technical reasons. In case of severe leakage, contact an authorized Customer Service center.

Remedy:

1. Separate the spray lance with the high-pressure nozzle from the spray lance extension and only work with the spray lance extension mounted.

2. Clean the filter on the detergent suction hose.

3. Check the detergent suction hose for kinks.
