Read these safety instructions, these original instructions, the safety instructions provided with the battery pack and the original instructions supplied with the battery pack/standard charger before using the device for the first time. Act in accordance with them. Keep the booklets for future reference or for future owners.

In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

1. Work area safety

   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

   2. Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.

   3. Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

2. Electrical safety

   1. Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce the risk of electric shock.

   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

   3. Do not expose machines to rain or wet conditions. Water entering a machine will increase the risk of electric shock.

   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

   5. When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

   6. If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

   1. Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.

   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

   3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energising machines that have the switch on invites accidents.

   4. Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.

   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.

   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

   8. Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury with a fraction of a second.

4. Machine use and care

   1. Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.

   2. Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.

   3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.

   4. Store idle machines out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.

   5. Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine’s operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.

   6. Keep cutting machines sharp and clean. Properly maintained cutting machines with sharp cutting edges are less likely to bind and are easier to control.

   7. Use the machine, accessories and machine bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.

   8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

5. Battery machine use and care

   1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

   2. Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

   3. When battery pack is not in use, keep it away from other metal objects, like paperclips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

   4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

   5. Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

   6. Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

   7. Follow all charging instructions and do not charge the battery pack or machine outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

   1. Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is maintained.

   2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

• Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

• Wear ear protection. Adequate protective equipment will reduce the risk of hearing loss.

• Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock.

• Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• When clearing jammed material or servicing the hedge trimmer, make sure all power switches are off and the lock-off is in the locked position. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

• Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.

• When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

Extended-reach hedge trimmer safety warnings:

• Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury.

• Always use two hands when operating the extended-reach hedge trimmer. Hold the extended-reach hedge trimmer with both hands to avoid loss of control.

• To reduce the risk of electrocution, never use the extended-reach hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injuryor electric shock resulting in death.

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery back, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

• Charge the battery pack in a location where the ambient temperature is between 10°C and 38°C.

• Store the battery pack in a location where the ambient temperature is between 0°C and 40°C.

• Use the battery pack in a location where the ambient temperature is between 0°C and 40°C.

• The battery-powered hedge trimmer with pole extension is only intended for private use.

• The device is intended for outdoor use only.

• For safety reasons, always hold the device firmly with both hands.

• The device is intended for cutting hedges, shrubs and similar plants. The user stands securely on the ground.

• The device can be extended up to a maximum of 2.8 m.

• The device may only be used in a dry, well-lit environment.

Any other use, e.g.cutting grass, trees or branches, is prohibited.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

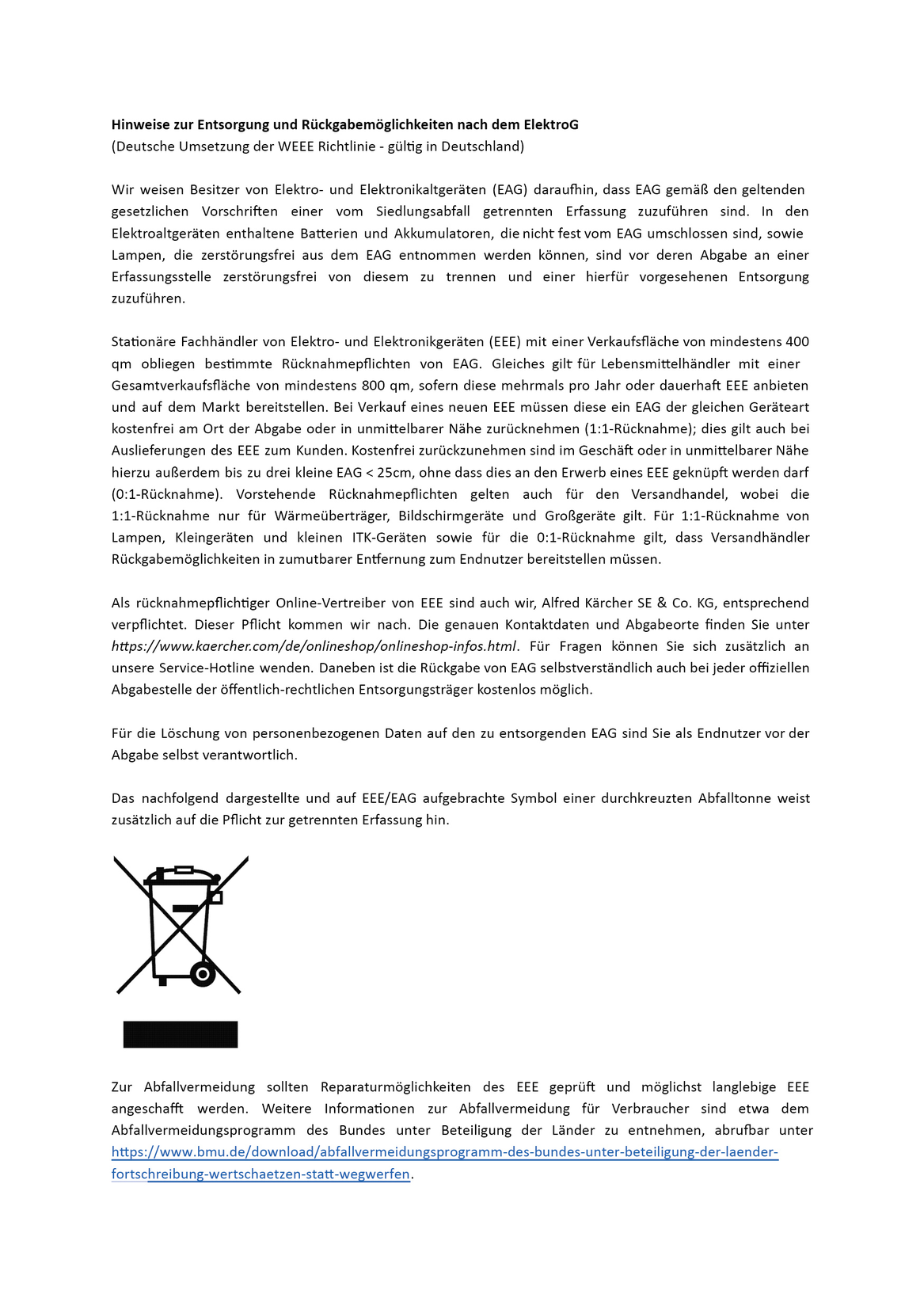

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

The power switch can only be operated if the power switch release button is pressed first. This prevents unintentional start-up.

The blade guard is an important component of the safety devices of the hedge trimmer. A damaged blade guard must not be used and must be replaced immediately.

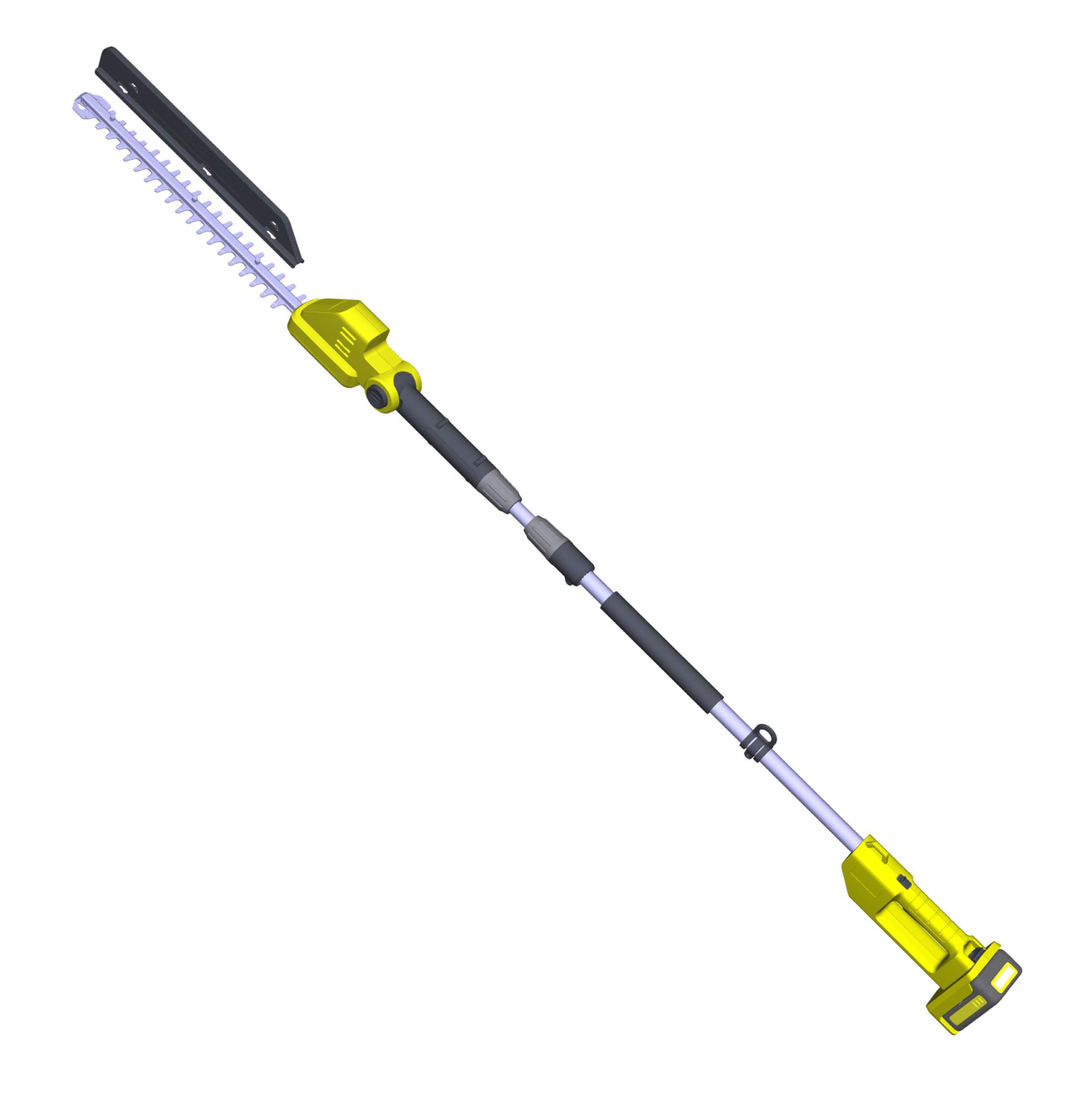

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

---

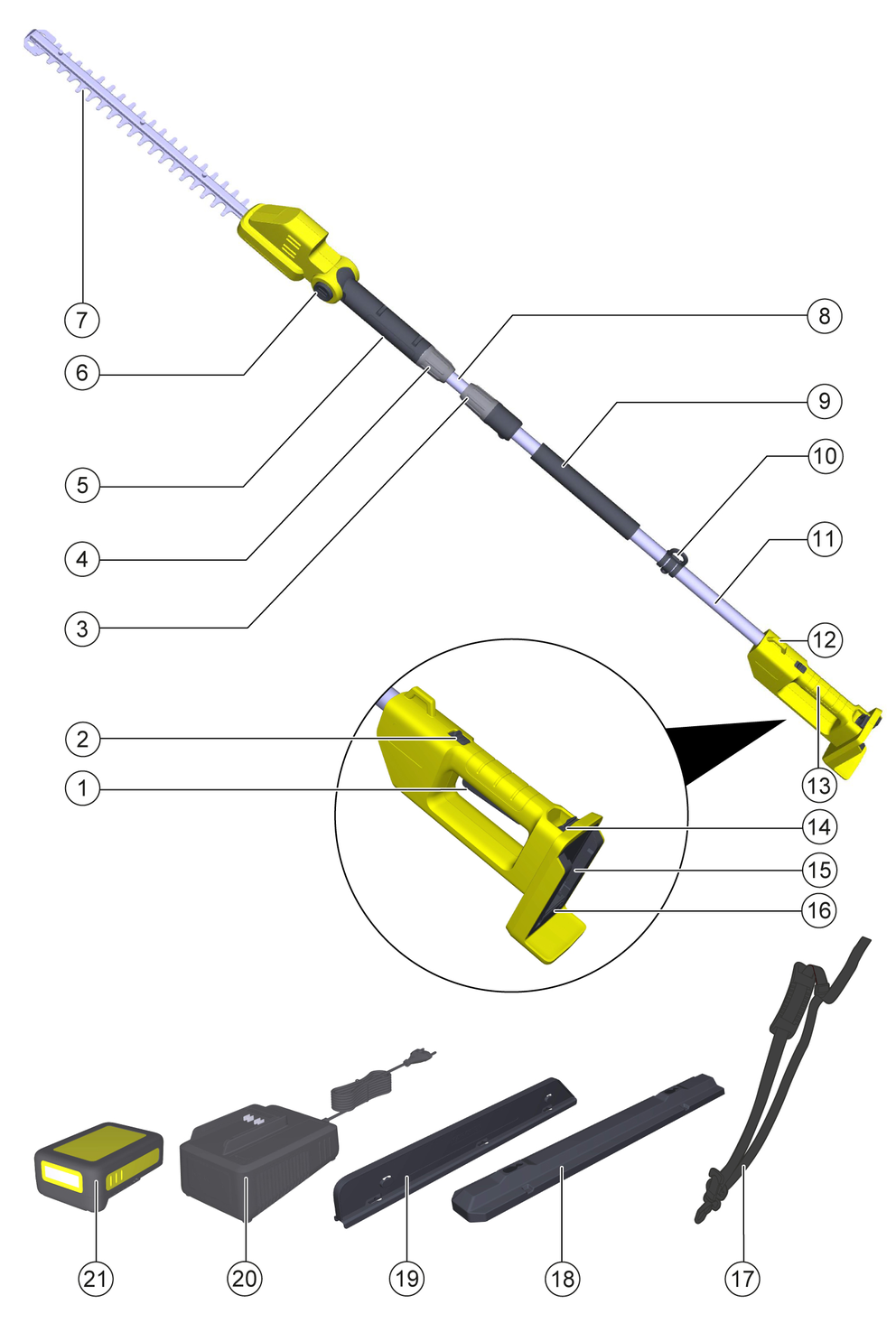

1. Trigger
2. Trigger lockout button
3. Fixing nut of telescopic shaft
4. Fixing nut
5. Upper shaft
6. Unlocking button for angle adjustment
7. Cutting blade
8. Telescopic shaft
9. Gripping surface
10. Eyelet for carrying belt
11. Lower shaft
12. Eyelet for carrying belt
13. Handle
14. Battery pack unlocking button
15. Type plate
16. Battery pack mount
17. Carrying belt
18. Blade guard
19. Cut material sweep
20. *Quick Charger Battery Power 18 V
21. *Battery Pack Battery Power 18V

* optional

The device can be operated with a 18 V Kärcher Battery Power battery pack.

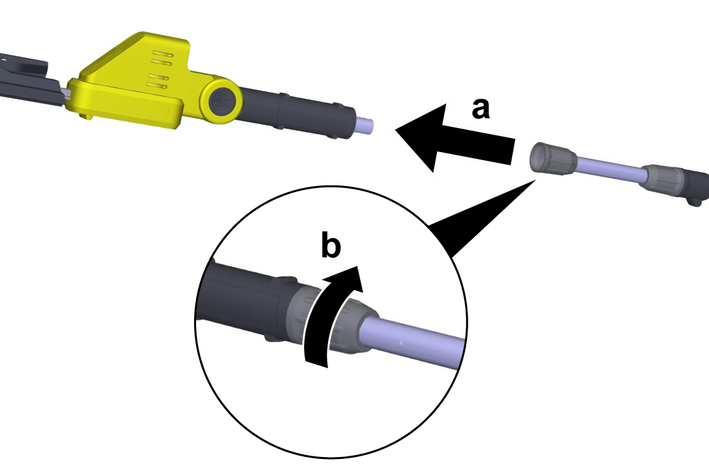

1. Slide the telescopic shaft into the shaft of the hedge trimmer.

2. Turn the fixing nut to the right as far as it will go to secure it.

   ---

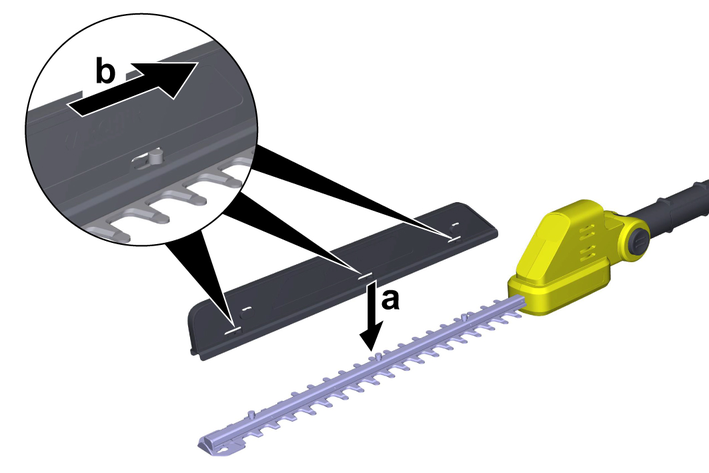

1. Remove the cut material sweep from the blade guard.

   ---



2. Install the cut material sweep on the hedge trimmer.

   ---

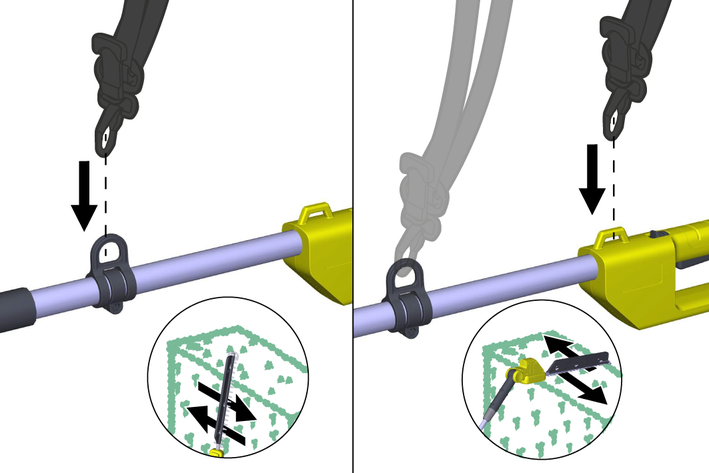

The carrying belt helps to lower the device in a controlled manner after cutting and to catch the weight of the device during use.

---

1. Hook the carrying belt hooks into the eyelets on the handle and shaft. Place the carrying belt over one shoulder. Make sure that the carrying belt can be released quickly in the event of danger.

---

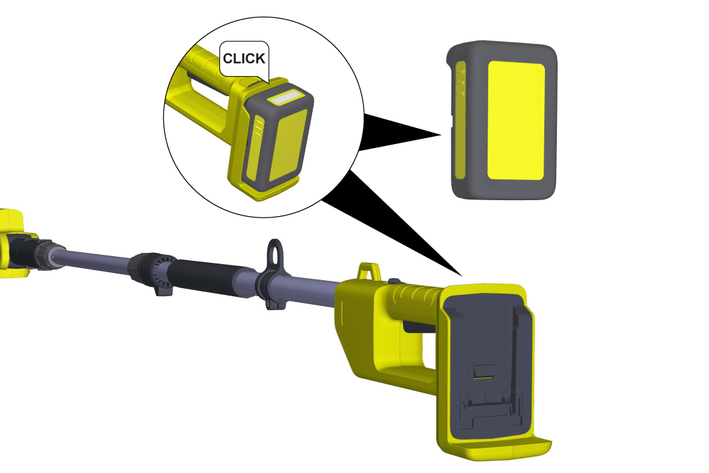

1. Push the battery into the mounting in the device until it audibly latches into place.

New users should be instructed by an experienced person and practice handling and techniques before carrying out any work.

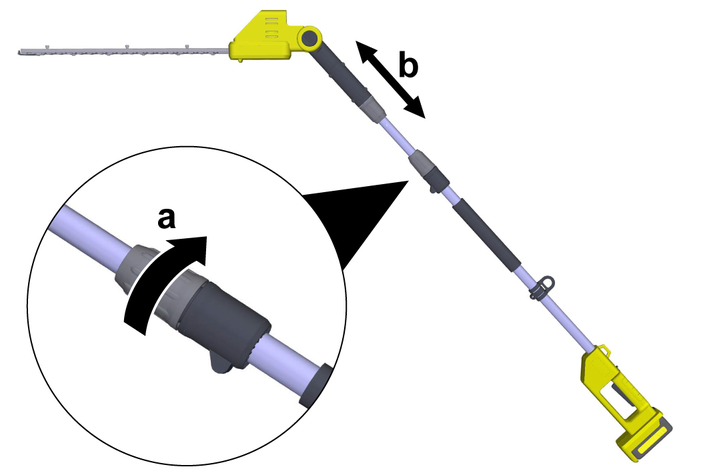

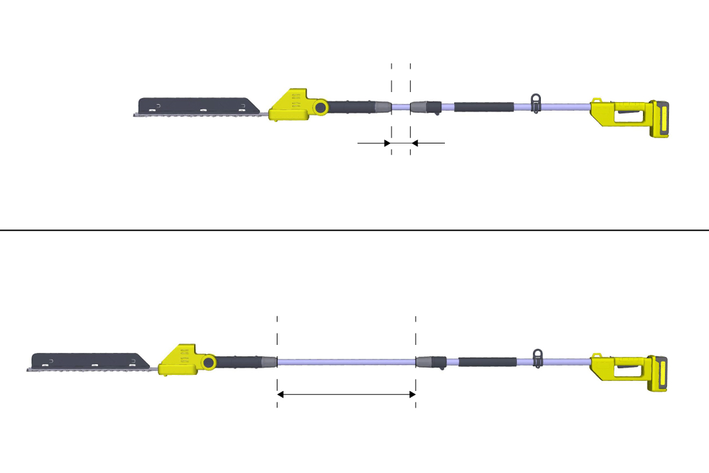

If required, the length of the device can be adjusted using the telescopic shaft.

---

1. Turn the telescopic shaft fixing nut anti-clockwise to loosen.

2. Adjust the telescopic shaft to the desired length.

   ---



3. Turn the telescopic shaft fixing nut to the right to secure it.

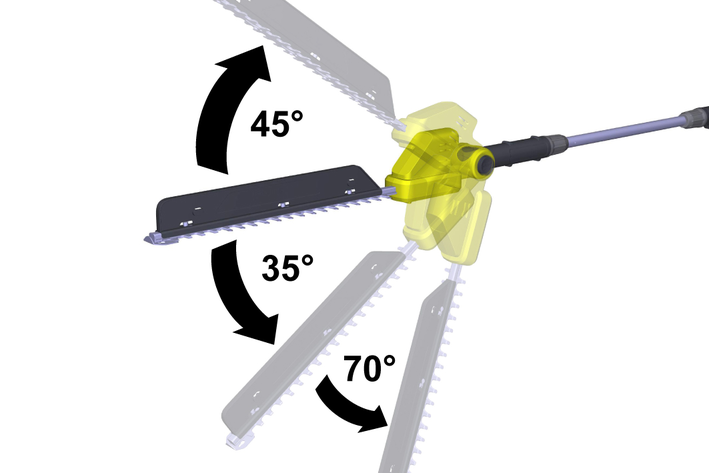

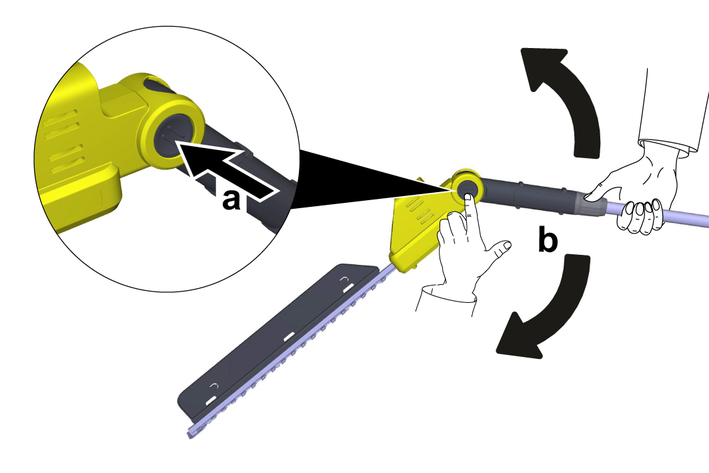

The angle between the handle / telescopic shaft and the hedge trimmer can be adjusted to suit working conditions.

---

1. Mount the blade guard.

   ---



2. Align the handle / telescopic shaft parallel to the ground.

3. Press the swivel button with one hand.

   ---



4. WARNING

   Cutting injuries on contact with the sharp blade

   Never move the blade by hand.

   With the other hand move the handle / telescopic shaft until the desired angle is set.

5. Release the swivel button.

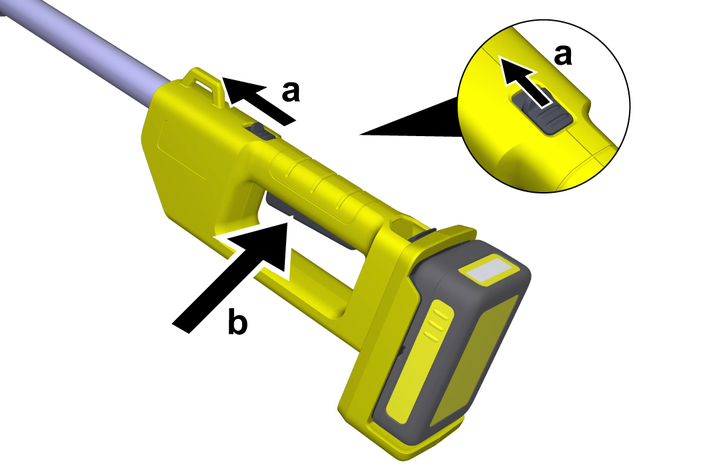

1. Push the trigger lockout button forwards to the end.

   ---



2. Press the trigger.

   The device starts up.

   Note

   The unlocking button does not need to be held during operation.

3. Release the trigger.

   The device stops.

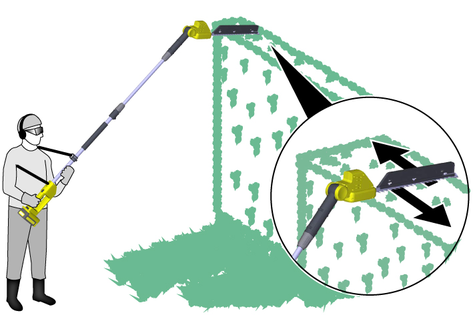

1. Check the cutting material for foreign bodies, such as paper, films or wires, and remove them as necessary.

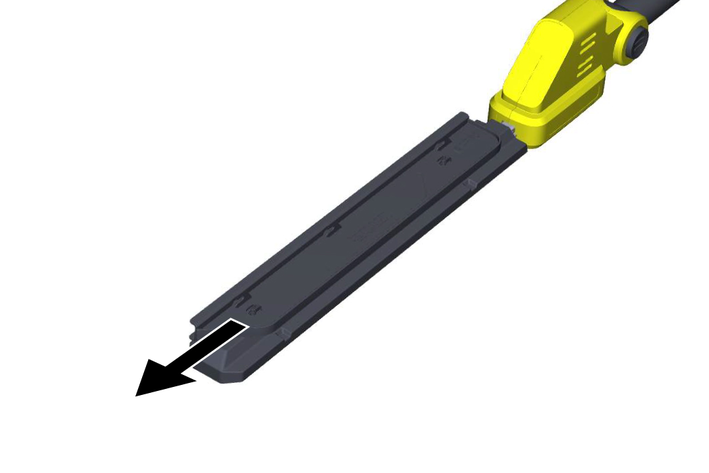

2. Remove the blade guard.

3. Switch on the device, see ChapterSwitching the device on.

4. Trim the hedge.

   ---

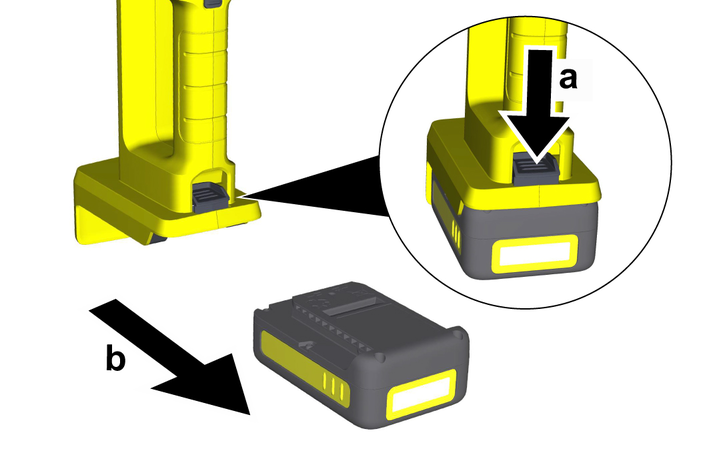

1. Press the battery pack unlocking button to unlock the battery pack.

   ---



2. Remove the battery pack from the device.

1. Remove the battery pack from the device (see Chapter Removing the battery pack).

2. Clean the device (see Chapter Cleaning the device).

1. Remove the battery pack, see chapter Removing the battery pack.

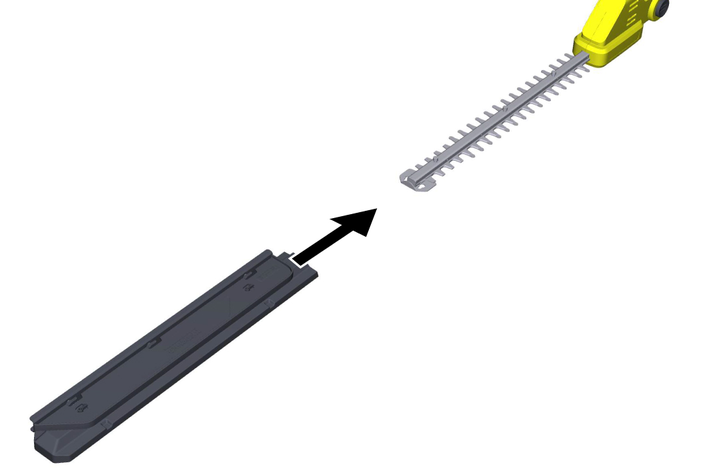

2. Install the blade guard with the cut material sweep.

   ---



3. Telescope the device to the shortest length.

   ---



Always clean the device before putting it into storage (see Chapter Cleaning the device).

1. Remove the battery pack, see chapter Removing the battery pack.

2. Mount the blade guard.

   ---



3. Telescope the device to the shortest length.

   ---



---

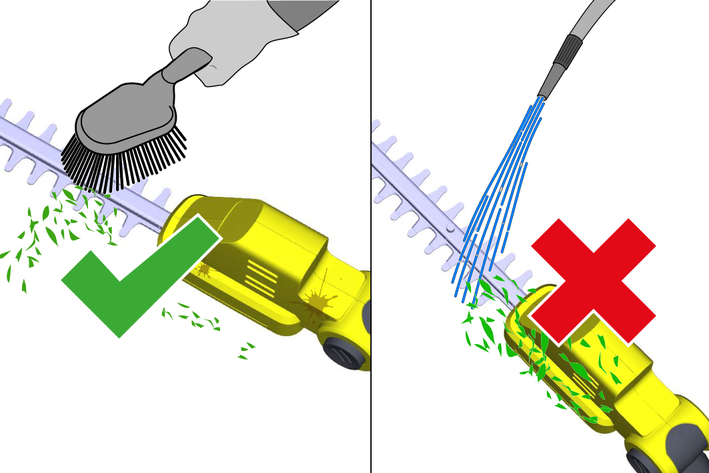

1. Allow the device to cool down.

2. Remove plant residue and dirt from the blade and motor casing with a brush.

3. Clean the ventilation slits on the device with a brush.

---

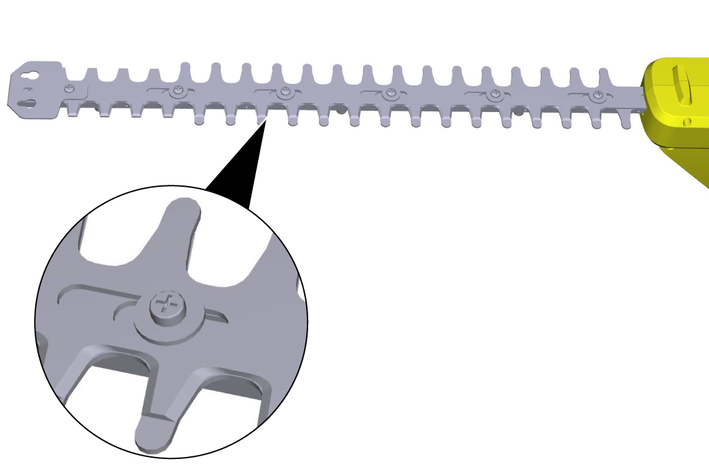

1. Check that all screws/nuts are tight.

2. Tighten any loose screws/nuts.

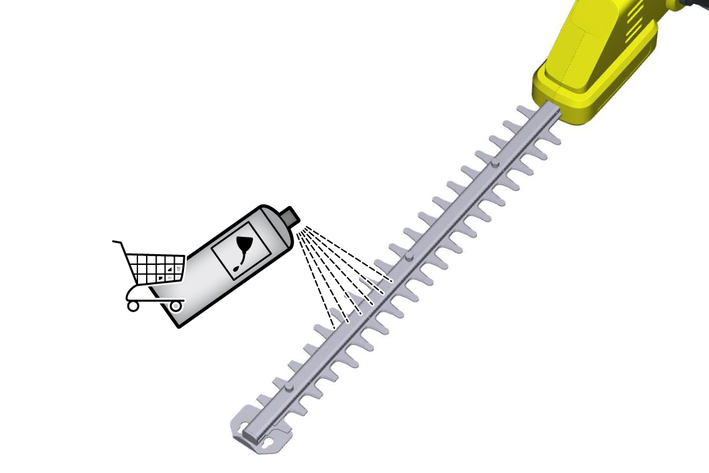

To maintain blade quality and optimum cutting results, apply a little spray oil or thin machine oil to the blades after each use.

---

1. Clean the device (see Cleaning the device).

2. Place the device on a horizontal, level and oil-resistant surface.

3. Apply a thin layer of oil to the top of the blades.

4. Fit the blade guard.

5. Clean the base and dispose of oil residues in an environmentally friendly manner and in accordance with local regulations.

1. Clamp the blade in a vice.

2. Sharpen the exposed side of the blade teeth with a file.

3. Carefully push the blade further by hand so that the unsharpened blade teeth are accessible.

4. Sharpen the exposed side of all blade teeth with a file.

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

As the battery pack ages, even if it is looked after, its capacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect.

• The device does not start up

• The device does not start up

• The device does not start up

• The device stops during operation

• The device stops during operation

• The device stops during operation

• Problems when installing the device

Cause:

Battery pack is not inserted correctly.

Remedy:

• Push the battery pack into the mounting until it latches into place.

Cause:

Battery pack is empty

Remedy:

• Charge the battery pack.

Cause:

Battery pack is defective.

Remedy:

• Replace the battery pack.

Cause:

Blade blocked with cutting material.

Remedy:

• Remove cutting material from the blade.

Cause:

The battery has overheated

Remedy:

• Stop working and allow the battery to cool down to normal battery temperature.

Cause:

Motor has overheated

Remedy:

• Stop working and allow the motor to cool down.

Cause:

Dirty joints

Remedy:

• Check the telescopic shaft for dirt and clean if necessary.

• Only place the device on clean surfaces.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

The declared vibration total values and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total values and the declared noise emission values may also be used in a preliminary assessment of exposure.

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us. The manufacturer shall bear sole responsibility for issuing of this declaration of conformity.

Product: Battery-powered hedge trimmer with extension

Type: 1.445-XXX.X

2000/14/EC (+2005/88/EC)

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 62841-1:2015+A11:2022

EN 62841-4-2:2019+A1:2022+A11:2022

2000/14/EC and amended by 2005/88/EC: Annex V

PHG 2-18:

Measured: 91

Guaranteed: 93

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: +49 7195 14-0

Fax: +49 7195 14-2212

---

Winnenden, 2025/11/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us. The manufacturer shall bear sole responsibility for issuing of this declaration of conformity.

Product: Battery-powered hedge trimmer with extension

Type: 1.445-XXX.X

S.I. 2001/1701 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2008/1597 (as amended)

S.I. 2012/3032 (as amended)

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 62841-1:2015+A11:2022

EN 62841-4-2:2019+A1:2022+A11:2022

S.I. 2001/1701 (as amended): Schedule 8

PHG 2-18:

Measured: 91

Guaranteed: 93

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: +49 7195 14-0

Fax: +49 7195 14-2212

---

Winnenden, 2025/11/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212
