With the KÄRCHER Home & Garden app, you benefit from the following advantages when using your device:

• Application tips & expert knowledge

• Product information, overview of accessories and operating instructions

• Support and service contact

• Online shop - exclusive offers and much more

Scan the code on the packaging or download the KÄRCHER Home & Garden app from your app store and conveniently register your product.

Read the original instructions before using the device for the first time and act in accordance with it. Keep the original instructions for future reference or for future owners.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

• Notify the dealer immediately in the case of shipping damage.

• Check the package contents when unpacking for missing accessories or for damage.

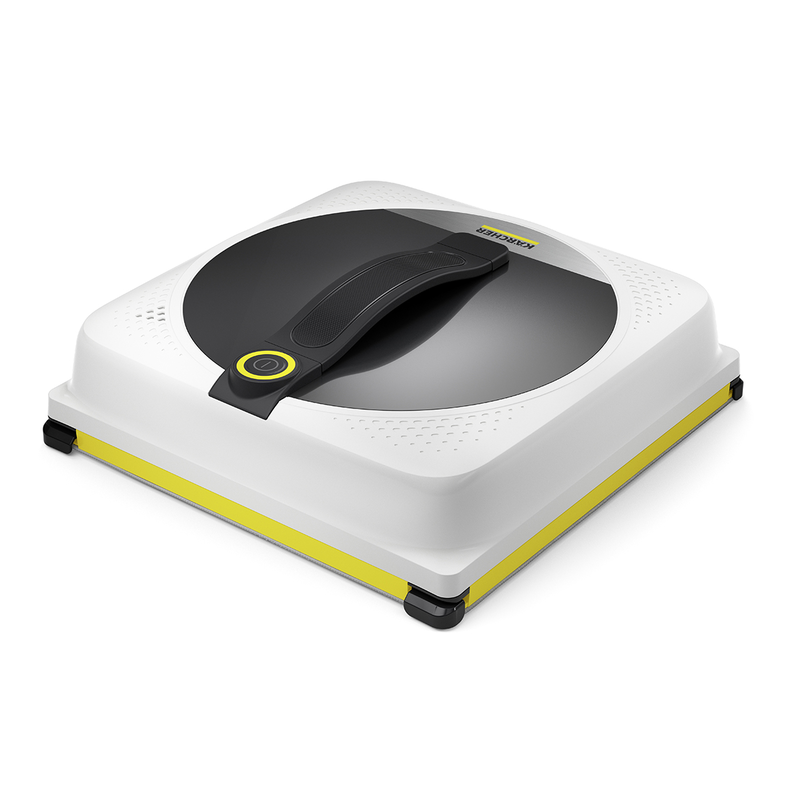

The cleaning robot is designed for cleaning vertical, framed glass surfaces with a maximum inclination of ±45°, as well as smooth, flat hard surfaces such as mirrors and furniture fronts.

The device is suitable for regular maintenance cleaning, not for basic cleaning. Pre-cleaning is required for heavy soiling (e.g. bird droppings, heavy pollen, window paint).

Only use the device in private households.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

The correctly fitted 4 m safety rope can prevent the cleaning robot from falling to the ground freely in case of a vacuum loss.

As the cleaning robot holds onto the glass surface with self-generated negative pressure, there is a risk of it crashing if the power supply is interrupted.

When fully charged, the built-in emergency supply battery provides enough power for a period of at least 40 minutes to hold the cleaning robot in place on the glass surface by means of negative pressure.

The cleaning robot contains a Li-Ion battery pack.

Replacing the battery pack:

1. Disconnect the device from the power supply and remove the cleaning pad.

2. Open the casing of the cleaning robot by unscrewing the screws on the back.

3. Localise the battery pack.

4. Disconnect the socket plug connection on the device board.

5. Unscrew the screws of the battery pack cover and remove the cover.

6. Remove the used battery pack, insert a new one and connect the plug to the device circuit board.

7. Reassemble the device and ensure that no hoses or other components are crushed or damaged.

Information on disposing of the battery pack:

• Dispose of the battery pack at the end of its service life in accordance with the applicable regulations.

Information on transporting the battery pack:

The lithium-ion battery is subject to the requirements of dangerous goods regulations. The battery pack can be transported by the user in public traffic areas without any further restrictions. When shipping by third parties (transport companies), special requirements for packaging and labelling must be observed. Do not use the battery pack if the casing is damaged. Tape off open contacts. Pack the battery tightly and securely. The battery pack must not be able to move in the packaging.

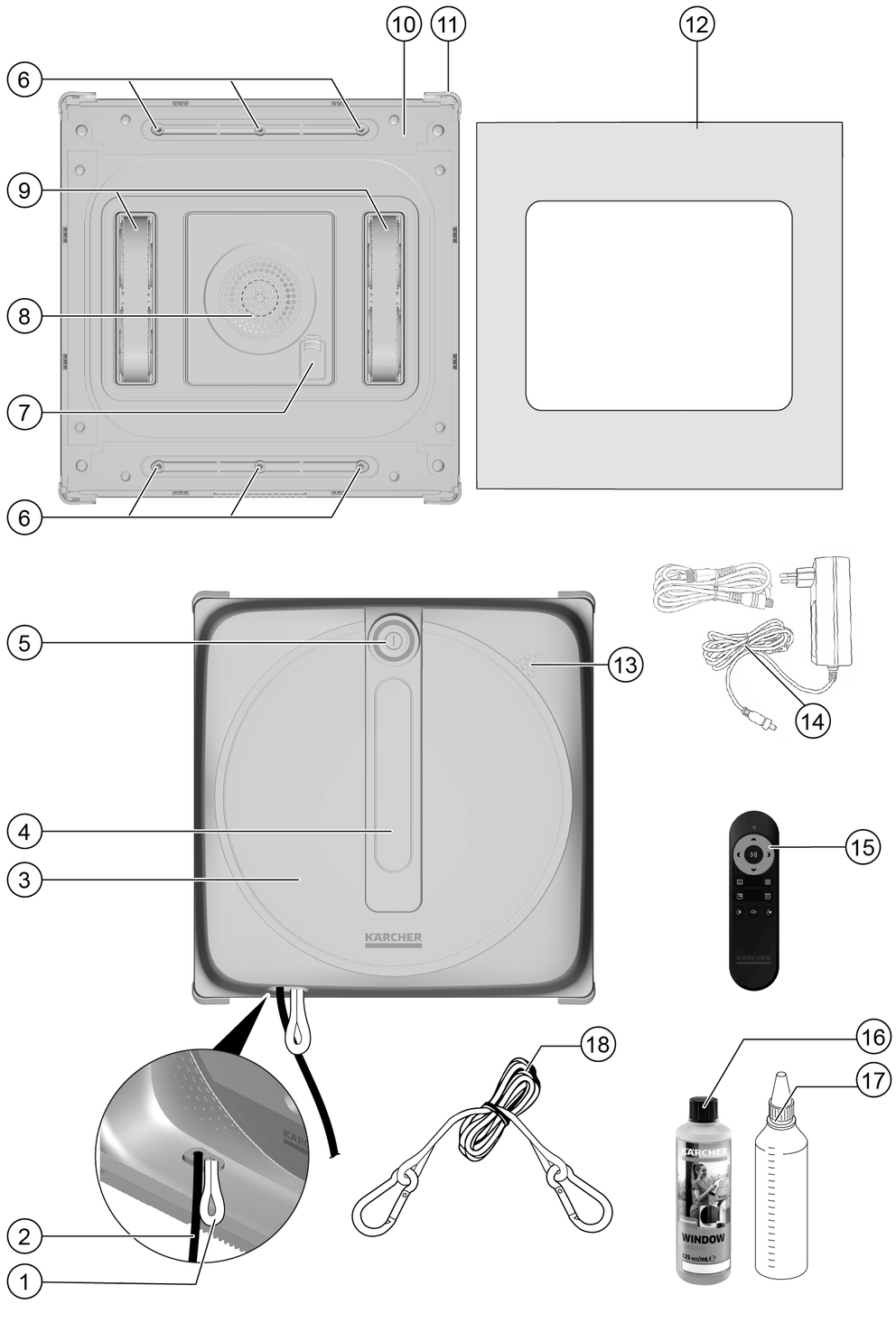

Depending on the model, the scope of delivery and colour may differ (see packaging imprint).

---

1. Safety eyelet
2. Mains cable
3. Emergency supply battery
4. Handle
5. On / Off button with status LED
6. Spray nozzles
7. Tank cover
8. Air intake opening
9. Belt drive
10. Velcro surface for attaching the wiper cloth
11. Edge sensor
12. Microfibre wiper cloth
13. Voice output
14. Power supply unit with extension cable
15. Remote control
16. Detergent RM 503 (125 ml)
17. Filling bottle
18. Safety rope with cabiner hooks

The cleaning robot outputs user information as speech (in addition to the LED display).

A list of possible messages can be found under "Voice output and LED codes".)

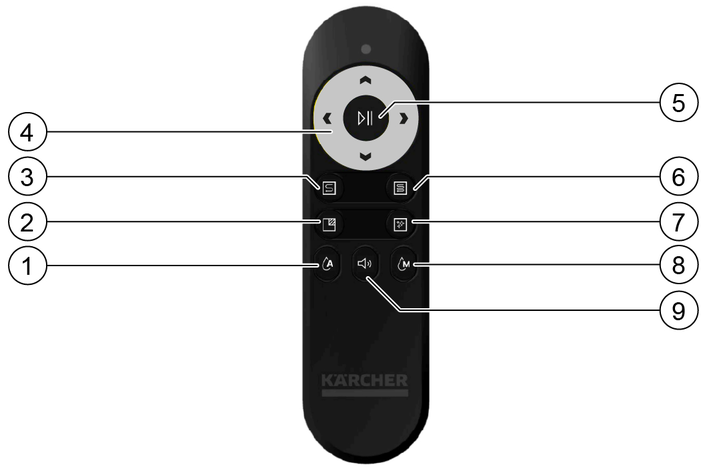

The cleaning robot can also be controlled using the remote control.

---

1. Automatic spray function On / Off
2. Spot cleaning
3. Quick cleaning
4. Arrow keys for manual control
5. Start / Pause
6. Intensive cleaning
7. Polishing
8. Manual spray function
9. Voice output On / Off

The function of the Start / Pause button depends on the situation in which the cleaning robot finds itself:

• The cleaning robot is switched on and positioned on the window. Cleaning has not started.

  • Short button press: The quick clean starts.

  • Briefly pressing the On / Off button on the cleaning robot has the same function as the Start / Pause button on the remote control.

• The cleaning robot is in automatic cleaning mode:

  • Short button press: The cleaning mode is paused.

  • Press the button again briefly: Cleaning mode continues.

• Short button press: The voice output is deactivated.

• Press the button again briefly: The voice output is activated.

• Long button press (3 s with mains cable connected and suction switched off): The language changes.

The device can be moved forwards, backwards, right and left manually using the arrow buttons.

• Short button press: The cleaning robot moves in the desired direction until the Pause button is pressed or the window frame is reached.

• Pressing an arrow button immediately cancels any automatic cleaning mode.

• While the cleaning robot is being moved manually, the automatic water stream is deactivated.

• Short button press: The selected cleaning mode is started.

• If one of the buttons is pressed while a cleaning programme is running, the active programme is deleted and the newly selected programme is started from the beginning.

• Short button press: The automatic spray function is deactivated.

• Press the button again briefly: The automatic spray function is activated.

• If the automatic water stream button is pressed, the automatic spray function remains deactivated until the button is pressed again or the cleaning robot is switched off and on again.

• Short button press: The cleaning robot sprays a single water stream.

The device consists of the cleaning robot and the remote control.

The remote control is used to control the device manually, select the cleaning mode and switch the voice output on or off.

The cleaning robot adheres to the glass surface to be cleaned via a self-generated vacuum and moves it down automatically.

6 spray nozzles distribute the cleaning solution precisely and evenly on the wiper cloth with the help of a pump.

Cleaning is carried out by wiping the moistened wiper cloth over the glass surface.

The device has various cleaning modes.

In automatic mode, the cleaning robot travels along the glass surface in overlapping paths and stops automatically when cleaning is complete.

The cleaning navigation system ensures that the glass surface is evenly travelled over and cleaned thanks to systematic route planning.

The position memory function ensures that the device automatically returns to the starting point for easy removal from the glass surface after cleaning.

In manual cleaning mode, the cleaning robot is controlled using the arrow buttons.

Operation requires a KÄRCHER microfibre cleaning cloth and KÄRCHER window cleaning detergent RM 503.

The device has various cleaning modes.

Single pass over the glass surface in horizontal movements.

Move across the glass surface in horizontal and vertical strokes, then polish and clean the edges.

Back and forth movements on a small surface.

Single pass over the glass surface in horizontal movements, followed by an edge cleaning.

Manual driving using the arrow buttons on the remote control.

The cleaning robot indicates various operating states and errors with voice output, light and signal tones.

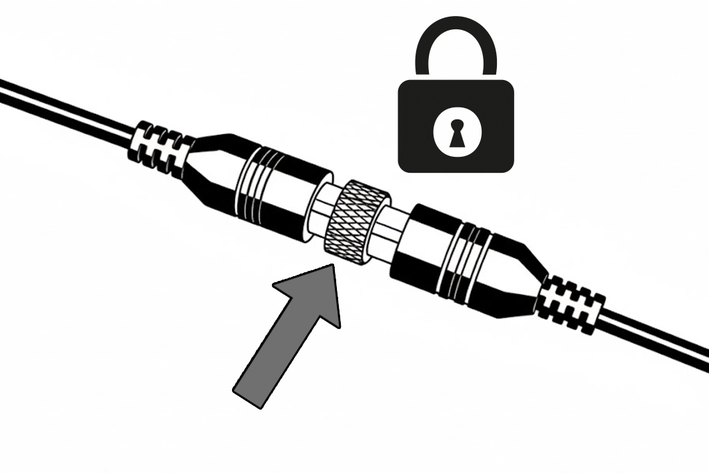

1. Insert the hollow plug into the socket of the device / extension cable.

2. Tighten the screw connection firmly.

   ---



   ATTENTION

   Risk of damage

   If the connection is not properly screwed down, the power supply may be interrupted by the movement of the device and the device may fall uncontrollably after the emergency supply battery has been drained.

   Therefore, make sure that the power supply is screwed on correctly.

1. Mix the cleaning solution. To do this, pour the detergent concentrate into the filling bottle and dilute with water according to the instructions on the label.

2. Fill the tank.

   Note

   To maintain a stable air pressure, do not overfill the tank.

   ---

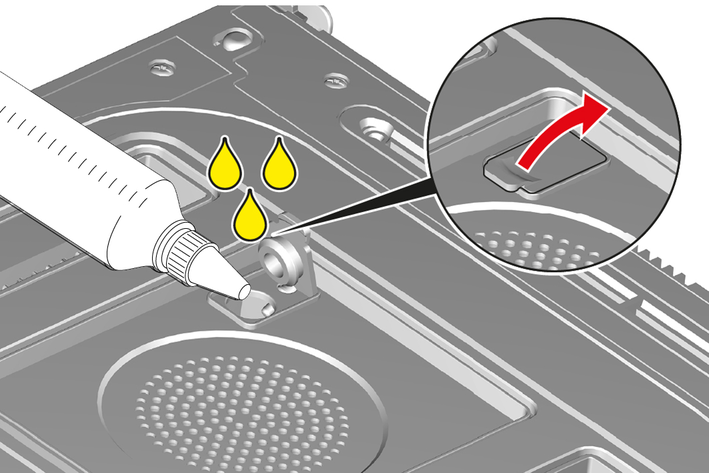

   1. Open the tank cap.

   2. ATTENTION

      Risk of damage due to liquid intrusion

      Cleaning fluid entering the ventilation openings can cause damage to the robot.

      When filling, make sure that no cleaning fluid runs into the ventilation openings.

      Fill the tank to max. 80% using the filler bottle.

3. Close the tank cap and press it on.

1. Place the wiper cloth straight and flat on the Velcro surface of the cleaning robot.

2. Ensure that the edge sensors and the belt drive can move freely and are not covered by the wiper cloth.

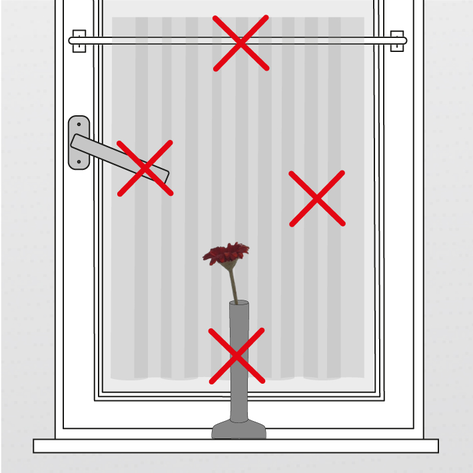

1. Remove any objects that protrude into the movement area of the cleaning robot and could hinder its movements.

   ---



   Obstacles can be,e.g.:

   • Curtains and drapes

   • Objects on windowsills

   • Window handles

   • Window pictures and stickers

   • Fasteners attached to the glass surface or adjacent framee.g. such as suction cups or hooks for net curtain rods etc.

2. Check the glass surface for heavy soiling, such asdried bird droppings or thick pollen buildup.

3. Pre-clean heavily soiled glass surfaces.

   Note

   Allow the pre-cleaned surfaces to dry completely before attaching the cleaning robot.

Ensure that the movement space of the cleaning robot is not restricted during operation.

The movement space can be limited by, for example:

• Shutters and blinds lowered accidentally or automatically

• Adjacent hinged or sliding doors and windows opening or closing accidentally or automatically

• Windows, doors, curtains and drapes, etc., moving accidentally or as a result of drafts

1. Check the safety rope and carabiner hooks for damage and contamination before each use.

   1. Replace damaged parts immediately.

   2. Clean dirty parts.

2. Check the safety rope for knots and twists; remove them if present.

3. Attach the safety rope:

   ATTENTION

   Attach the safety rope so that it cannot get into the movement area of the cleaning robot. If the robot runs over the strap, it could detach from the glass surface and fall down.

   ---

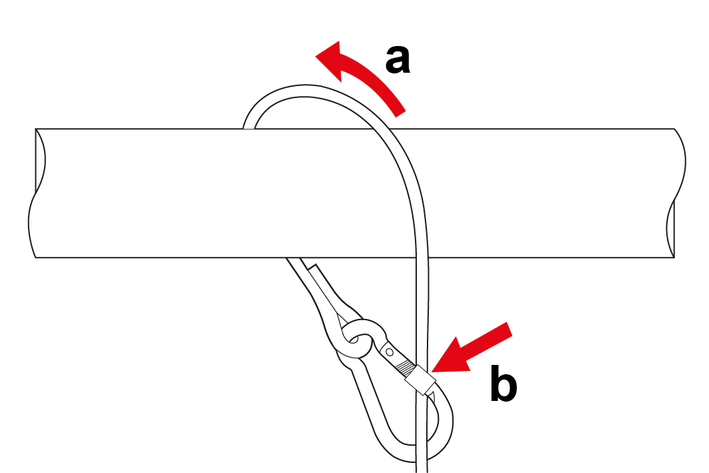

   1. Loop the safety rope around a suitable, stable point (e.g. around window handles, curtain rail, table leg, wall or ceiling hooks).

   2. Hook the carabiner hook into the safety rope and tighten the safety catch.

   3. Attach the second carabiner hook to the loop on the cleaning robot and tighten the safety catch.

      WARNING

      Always tighten the safety latch, otherwise the carabiner hook can come loose from the cleaning robot during various movements.

      Note

      If no suitable fixing point is available, the safety rope can also be clamped in the window. To do this, open the window, clamp the safety rope at the top and bottom and close the window firmly.

      Note

      Make sure that there is always enough safety rope so that the cleaning robot can cross the entire window.

1. Preparing the cleaning robot:

   1. Fill the detergent tank.

   2. Attach the microfibre wiper cloth.

2. Attach the safety rope.

3. Fit the power cable.

4. Insert the mains plug into a mains socket.

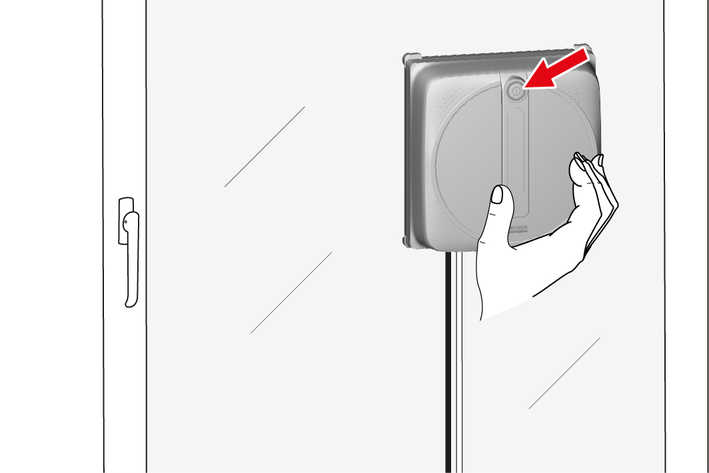

5. Position the cleaning robot vertically on the glass surface and hold the on / off button until the motor starts and the robot adheres firmly to the pane.

   Note

   Place the cleaning robot at mid-height on the glass surface, maintaining a distance from the frame.

   ---



6. Start the quick cleaning programme by briefly pressing the on / off button or use the remote control to select the desired cleaning programme.

   Cleaning starts.

   Note

   We recommend observing the cleaning robot the first time it is used on a new surface to check whether it recognises the edges and frames correctly or whether there are any obstructions.

1. Briefly press the Start / Pause button on the remote control or the On / Off button on the device.

   The robot can be manually navigated to the desired position using the arrow buttons on the remote control.

   Note

   At the end of an automatic cleaning programme, the cleaning robot stops at its original position.

2. Remove the cleaning robot from the glass surface:

   ---



   1. Hold the cleaning robot by the handle and press the On / Off button 2 - for 3 seconds.

   2. Wait until the motor noise stops and the vacuum has been released.

   3. Remove the cleaning robot from the glass surface.

3. Transfer the cleaning robot to another glass surface:

   1. Clean the underside of the cleaning robot, especially the sensors, spray nozzles and belt drive.

   2. Change or turn the wiper cloth if necessary.

   3. If necessary, remove the safety rope and attach it to a new position.

   4. Start the cleaning.

4. Finishing the cleaning:

   1. Pull out the mains plug.

   2. Remove the safety rope.

   3. Remove the wiper cloth.

   4. Drain the detergent tank.

5. ATTENTION

   Risk of damage due to liquid intrusion

   Cleaning fluid entering the ventilation openings can cause damage to the robot.

   Make sure that no cleaning fluid runs into the ventilation openings.

   Clean the cleaning robot, see Cleaning the cleaning robot.

1. Remove the microfibre wiper cloth and wash it out or wash it in the washing machine at up to 40 °C without fabric softener.

2. Clean the belt drive, sensors, and spray nozzles with a damp cloth.

   ---



   1. Belt drive
   2. Spray nozzles
   3. Edge sensors

3. ATTENTION

   Risk of damage due to liquid intrusion

   Liquid entering the ventilation openings can cause damage to the robot.

   Do not hold the cleaning robot under running water.

   If necessary, clean the casing of the cleaning robot with a damp cloth.

Only store the device indoors.

You can remedy minor faults using the following overview.

If in any doubt, please contact your authorised Customer Service.

• Cleaning robot does not stick to glass surface / error message: Insufficient vacuum

• Cleaning robot slips during application

• The cleaning robot stops beyond reach

• The cleaning robot stops

• The cleaning robot does not spray water

• Cleaning performance is not satisfactory

• Edge sensor error

• Drive error

• Gyroscope error

• Battery fault

Cause:

Vacuum loss

Remedy:

1. Check that the wiper cloth is undamaged and correctly fitted.

2. Do not use the cleaning robot on wet, oily or greasy glass surfaces. Only use the robot on vertical (+/- 45°) and flat glass surfaces. Edges, gaps and uneven areas can lead to vacuum loss.

Cause:

The turbine does not work properly.

Remedy:

1. Contact Kärcher Service.

Cause:

Vacuum not sufficient.

Remedy:

1. Check that the wiper cloth is undamaged and correctly fitted.

2. Do not use the cleaning robot on wet, oily or greasy glass surfaces. Only use the robot on vertical (± 45°) and flat glass surfaces. Edges, gaps and uneven areas can lead to vacuum loss.

Cause:

The wiper cloth is too wet or too dirty.

Remedy:

1. Replace the wiper cloth.

Cause:

Belt drive is wet or dirty.

Remedy:

1. Remove the cleaning robot from the glass surface, then clean and dry the belt drive.

Cause:

The turbine does not work properly.

Remedy:

1. Contact Kärcher Service.

Cause:

Fault in the cleaning robot.

Remedy:

1. Use the remote control to manually bring the cleaning robot within reach and remove it from the glass surface.

Cause:

The power cable is disconnected / power failure. The cleaning robot holds onto the glass surface with the aid of the emergency supply battery.

Remedy:

1. Check the mains cable and the mains plug.

2. In the event of a power failure, remove the robot from the glass surface.

3. Check whether the length of the mains cable and the safety rope is sufficient for the size of the glass surface.

Cause:

Edge sensors are blocked.

Remedy:

1. Remove the cleaning robot from the glass surface.

2. Check the sensors for obstructions and clean.

Cause:

The window is too small.

Remedy:

1. Check whether the minimum window size of 40x40 cm is reached.

Cause:

Automatic water dispensing is deactivated.

Remedy:

1. Activate automatic water dispensing with the remote control or spray water manually.

Cause:

The water reservoir is empty.

Remedy:

1. Fill the water reservoir.

Cause:

Air bubbles in the water reservoir.

Remedy:

1. Move and turn the cleaning robot.

2. Place the cleaning robot on the glass surface and start cleaning.

Cause:

The spray nozzle is blocked.

Remedy:

1. Clean the spray nozzle and test the spray function manually using the remote control.

2. Apply a drop of descaling liquid to the spray nozzle, leave to act briefly, clean the spray nozzle and test the spray function manually using the remote control.

Cause:

Wiper cloth is soiled.

Remedy:

1. Remove coarse dirt from the window before use.

2. Select intensive cleaning mode on the remote control.

3. Change the wiper cloth after every window.

4. Repeat cleaning with a clean wiper cloth.

5. Clean the windows regularly.

Cause:

Wiper cloth loses lint on the glass.

Remedy:

1. To remove the lint, wash the wiper cloth in the washing machine at up to 40 °C.

Cause:

Wiper cloth is too dry.

Remedy:

1. Spray manually several times until the wiper cloth is moistened. Make sure that the wiper cloth does not get too wet to prevent the robot from slipping on the glass surface.

Cause:

Fault in the cleaning robot.

Remedy:

1. Remove the cleaning robot from the glass surface.

2. Remove any obstructions from the sensor and clean it.

3. Check whether parts of the sensor are broken or damaged.

Cause:

Fault in the cleaning robot.

Remedy:

1. Remove the cleaning robot from the glass surface.

2. Check whether the belt drive is blocked.

3. Clean and dry the belt drive.

4. Check whether the belt drive is broken or damaged.

Cause:

Fault in the cleaning robot.

Remedy:

1. Switch off the robot.

2. Disconnect the mains cable.

3. Wait 1 minute.

4. Switch on the robot.

5. If the error persists, contact Kärcher Service.

Cause:

Fault in the cleaning robot.

Remedy:

1. Connect the robot to the mains cable.

2. Wait 1 hour until the emergency supply battery is charged.

3. Switch on the robot.

4. If the error persists, contact Kärcher Service.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Alfred Kärcher GmbH & Co. KG hereby declares that the radio device type Window Robo Cleaner complies with the 2014/53/EU directive. The full text of the EU Declaration of Conformity can be found at www.kaercher.com/int/robot-vacuums-and-mopsconformity.html.

The power consumption in OFF mode is less than 0.5 W.
