EDI 4
59696620 (02/21)
Hazard levels
DANGER
Indication of an imminent threat of danger that will lead to severe injuries or even death.
WARNING
Indication of a potentially dangerous situation that may lead to severe injuries or even death.
CAUTION
Indication of a potentially dangerous situation that may lead to minor injuries.
ATTENTION
Indication of a potentially dangerous situation that may lead to damage to property.
IMPORTANT SAFETY INSTRUCTIONS
Read all safety warnings, instructions, illustrations and specifications provided with this device and observe all basic precautions when using the device or charging the battery, including all instructions on the following pages. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
Not for commercial use!
DANGER
Adhere to the respective safety regulations in hazard zones (e. g. service stations). Never operate the device or charge the battery in explosive atmospheres or spaces, such as in the presence of flammable liquids, gases or dust. The device or battery charger could create sparks which may ignite the dust or fumes.
Never touch the battery charger plug and socket with wet hands.
Short circuit hazard! Do not insert conductive objects (such as screwdrivers or similar) into the charging socket of the device or the battery charger plug. Keep the charging socket of the device and the battery charger plug away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Danger of explosion. Do not charge any non-rechargeable battery.
WARNING
WARNING
Use the device and accessories in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the device for operations different from those intended could result in a hazardous situation.
WARNING
The device is not intended for use by children, persons with restricted physical, sensory or mental abilities or persons unfamiliar with these instructions.
WARNING
The device should only be operated by persons who have been instructed with regard to its use, or those who have demonstrated their ability to operate it and have been expressly authorized to do so.
WARNING
Children must not play with the device or the battery charger.
WARNING
Children must be supervised to prevent them from playing with the device or the battery charger.
WARNING
Only use the device and battery charger for its proper use and take into account the local conditions.
WARNING
Risk of injury. Avoid contact with the rotating scraper disc. Replace the protective cap when not using the device.
WARNING
Do not use the device or battery charger if it is not working as it should, has been dropped, left outdoors, dropped into water, is damaged or leaking.
WARNING
Only operate or store the device and battery charger in accordance with the description and/or illustration.
WARNING
Stay alert, watch what you are doing and use common sense when operating the device. Do not operate the device while you are tired or under influence of drugs, alcohol or medication. A moment of inattention while operating the device may result in serious personal injury.
WARNING
Use personal protective equipment. Always wear eye protection.
WARNING
Prevent unintentional starting. Ensure the switch is in off‑position before picking up, carrying or charging the device. Carrying the device with your fingers on the switch or while the device is turned on invites accidents..
WARNING
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
WARNING
Dress properly. Do not wear loose clothing or jewelery. Keep your hair and clothing away from moving parts. Loose clothes, jewelery or long hair can be caught in moving parts.
WARNING
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
WARNING
Operate the device in well lit areas. Dark areas invite accidents.
WARNING
Keep children and bystanders away while operating the device. Distractions can cause you to lose control.
WARNING
Keep scraper disc sharp and clean. Properly maintained scraper discs with sharp cutting edges are less likely to bind and are easier to control.
WARNING
Do not use the device if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
WARNING
Store idle device out of the reach of children and do not allow persons unfamiliar with the device or these instructions to operate the device. The device is dangerous in the hands of untrained users.
WARNING
Maintain the device and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the device’s operation. If damaged, have the device repaired before use. Many accidents are caused by poorly maintained devices.
WARNING
Disconnect the battery charger plug from the power source before making any adjustments, changing accessories, or storing the device. Such preventive safety measures reduce the risk of starting the device accidentally.
WARNING
To reduce the risk of fire, electric shock or injury:
WARNING
Immediately replace a damaged battery charger together with charging cable with an original part.
WARNING
Do not open, modify or repair the battery charger, the device or the battery. Repairs are only to be carried out by qualified personnel.
WARNING
The device and the battery charger contain electrical components - do not clean the device or the battery charger under running water.
WARNING
You may not charge the battery for longer than 24 hours without interruption.
WARNING
Disconnect the charger from the electrical outlet when not in use as well as before carrying out any maintenance work on the charger or device.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Battery charger plug must match the outlet. Never modify the battery charger plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock.
Do not expose to rain. Store indoors.
Do not abuse the battery charger output cord. Do not pull or carry by the battery charger output cord, do not use battery charger output cord as a handle, do not close a door on the battery charger output cord, or pull battery charger output cord around sharp edges or corners. Do not run appliance over battery charger output cord. Keep battery charger output cord away from heat, heated surfaces, oil and moving parts. Damaged or entangled cords increase the risk of electric shock.
Unless otherwise stated in the instructions for use and care, do not modify or repair the device or the battery.
Do not unplug by pulling battery charger output cord. To unplug, grasp plug.
Do not handle battery charger or appliance with wet hands.
Only use and store the battery charger in dry rooms, not outdoors.
Only store the device in dry rooms, not outdoors.
Do not incinerate the device, even if it is severely damaged. The battery could catch fire and explode.
In case of visual damage, replace the charger with original manufacturer suggested parts.
If misused, liquid can leak out of the battery. The escaping liquid can cause skin irritation or burns. Do not touch this. If you accidentally touch it, rinse the affected area with water. If the liquid comes into contact with the eyes, seek medical help.
Do not use a damaged or modified battery or a damaged or modified device. Unpredictable processes can occur in damaged or modified batteries, which can lead to fire, explosions or injuries.
Recharge only with the battery charger specified by the manufacturer. A battery charger that is suitable for one type of battery may create a risk of fire when used with another battery.
Follow all charging instructions and only charge the battery or device within the temperature range specified in the instructions. Incorrect charging or charging outside the specified temperature range can damage the battery and increase the risk of fire.
The voltage indicated on the type plate must correspond to the supply voltage.
Do not make any modifications to the battery.
The battery has been tested in accordance with the relevant regulations for international transport and can be transported / delivered.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, immediately seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use the device if the device or its battery is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
Do not expose the device or battery to strong sunlight, fire or excessive temperature. Exposure to strong sunlight, fire or temperature above 266 °F (130 °C) may cause explosion.
Follow all charging instructions and do not charge the device outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
CAUTION
CAUTION
Never leave the device unsupervised while it is in operation.
CAUTION
Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the device in unexpected situations.
CAUTION
Switch off appliance prior to transportation. Secure the appliance, taking into account its weight, see chapter Technical data.
ATTENTION
To avoid damage to the seal or paint, do not use the device at the edge of the windscreen.
ATTENTION
Only store the battery charger in dry rooms at an ambient temperature of 41-104 °F (5-40 °C) and only use it under these conditions.
Only store the device in dry rooms at an ambient temperature of 41-104 °F (5-40 °C) and use it only at an ambient temperature of -4 °F to +104 °F (-20 °C to +40 °C). Do not store the device in a vehicle for a longer periods of time.
Have your device serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the device is maintained.
Never service damaged batteries. Service of batteries should only be performed by the manufacturer or authorized service providers.
ATTENTION
This device contains Li-Ion batteries that can not be replaced.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE:
Owner/User Responsibility
The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this device.
Warning information should be emphasized and understood.
If the operator is not fluent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.Owner and/or user must study and maintain for future reference the manufacturer’s instructions.
Symbols on the device
Device type:
1.598-903.0
Use the following charger:
6.654-397.0
Charge the battery only using the original charger enclosed or with a charger approved by KÄRCHER. |
 | WARNING - To reduce the risk of injury, fire or explosion: Read the instruction manual |
Intended use
The ice scraper is intended for private use, not for commercial use.
The battery-powered device is designed to remove frost deposits (white frost, hard rime, clear ice) from car windshields.
Never use the device with the abrasive disk to clean car paint.
Other uses of the device are prohibited. The user is liable for any damage caused by improper use.
Customer Service
Registration
Your device must be registered in order to help with any questions or issues that you have. You can register your device at www.karcher-register.com if located in the U.S.A. or www.karcher.com/ca if located in Canada.
Warranty
In the case of a warranty claim, you can contact customer support. Please see the contact information listed below for either the USA or Canada. You MUST provide your proof of purchase in order to file a warranty claim either via email, phone or fax.
USA Customer Service
You can contact our Customer Service department by phone at 1-800-537-4129 or via the website at www.karcher.com/us.
Canada Customer Service
You can contact our Customer Service department by phone at 1-800-465-4980 or via the website at www.karcher.com/ca.
Environmental protection
The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.
Electrical and electronic appliances / devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance / device. Appliances / devices marked by this symbol are not allowed to be disposed of together with the household trash.
Current information on content materials can be found at: www.kaercher.de/REACH
Accessories and spare parts
Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.
Information on accessories and spare parts can be found at www.kaercher.com.
Scope of delivery
The scope of delivery for the appliance is shown on the packaging. During unpacking, check the contents for completeness. If any accessories are missing or in the event of any shipping damage, please notify our Customer Service department as stated above either by phone or via the website.
Description of the unit
- Charger
- Power switch
- Charging socket
- Charge level indicator
- Trigger switch
- Type plate
- Abrasive disk
- Protective cover
Blink codes
 |
|
 |
|
 | A fault has occurred (see chapter Troubleshooting guide). |
Initial startup
Battery charging
Charge the battery.
Note
The charge level indicator flashes during the charging process. When the battery is fully charged, it lights up continuously for 1 hour. For the duration of the charging time, see chapter Technical data.
Operation
General information on using the device
Clean the device before each use (see chapter Cleaning the device).
Make sure to regularly clean car windows to remove dirt particles that could cause scratches during operation. Pay particular attention to the areas outside the reach of your windshield wipers, where dirt and debris is often pushed. Do not solely rely on cleaning your windows with the windshield wiper system to remove dirt and debris.
When de-icing an unclean windshield, only de-ice the wiping area of the windshield wiper system in order to avoid possible scratches from dirt around the edges.
Pressing gently, move the device slowly over the windshield.
For areas with thick ice, leave the device in the same place until the ice breaks.
Note
The additional use of a de-icing agent is not necessary.
Starting up the device
Press the power switch.
The device is switched on and in standby mode.

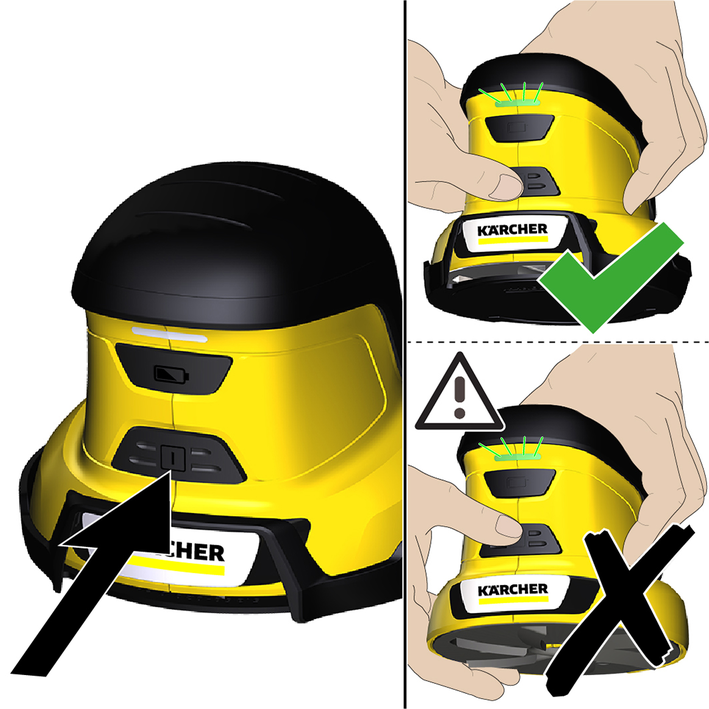

Remove the protective cover by pressing on the side.
Place the device on the windshield. Keep a distance from the seals and the car paint.
Press the trigger switch.
The abrasive disk will start to rotate.
Transport
WARNING
Risk of injury, risk of damage!
Be aware of the weight of the device during transportation.
Stow or secure the device in accordance with the applicable guidelines so that it does not slide or jostle around during transport.
Switch off the device.
Fit the protective cap to the device.
Stow or secure the device so that it does not slide or jostle around in the vehicle when accelerating, braking, cornering or in the event of an accident.
Storage
ATTENTION
Improper storage
Damage to the device and battery
Do not store the device in the vehicle for a long period of time.
Switch off the device at the power switch.
Clean the device (see chapter Cleaning the device).
Attach the protective cover.
Store the device within the permitted ambient temperature (see chapter Technical data).
If the device is in storage for a long period of time (e.g. over the summer months), fully charge the battery (see chapter Battery charging).
Care and service
The device is maintenance-free, so it is not necessary to carry out regular maintenance work.
Cleaning the device
Before each use of the device, remove dirt from the abrasive disk to avoid scratching the windshield.
Switch off the device at the power switch.
Clean snow, ice and other dirt from the device.
Carefully remove the dirt from the abrasive disk, wiping the edges several times in their direction.
Replacing the abrasive disk
If the device is used regularly, the abrasive disk must be replaced at least after every winter period, even if there is no visible wear and tear (part number: 5.352-024.3).
Switch off the device with the power switch.
Fix the device with one hand.
Remove the abrasive disk with the other hand.
Press the new abrasive disk into the holder.
Troubleshooting guide
DANGER
Contact with live parts
Injury due to electric shock
Before carrying out any work on the device, switch it off and disconnect it from the charger.
Have repair work and work on electrical components carried out only by authorized Customer Service personnel.
The charge level indicator is flashing quickly.
Cause:
The charging/ambient temperature is too low or too high.
Remedy:
Note the permissible temperature ranges (see chapter Technical data).
Wait until the charge level indicator stops flashing or press the power switch for 3 s.
Cause:
The abrasive disk is blocked.
Remedy:
Wait until the charge level indicator stops flashing or press the power switch for 3 s.
Check the device for blockages and remove them if necessary.
Make sure that the device is switched off.
Carefully remove the blockages.
Cause:
The load is too high.
Remedy:
Wait until the charge level indicator stops flashing or press the power switch for 3 s.
The abrasive disk is rotating without the trigger switch being activated.
Remedy:
Wait until the charge level indicator stops flashing or press the power switch for 3 s.
The device is not de-icing properly.
Cause:
The abrasive disk is damaged.
Remedy:
Replace the abrasive disk (see chapter Replacing the abrasive disk).
Technical data
Electrical connection / battery | |
Nominal voltage of battery | 7,2 V |
Power input max. | 14 A |
Protection class | IPX1 |
Protection class | III |
Charger | |
Mains voltage for charger | 100 - 130 V |
Output voltage | 9,5 V |
Output current | 0,6 A |
Phase | 1 ~ |
Frequency | 60 Hz |
Device performance data | |
Charging time for an empty battery | 3 h |
Operating duration with a fully charged battery | 15 min |
Ambient conditions | |
Ambient temperature | -4 - +104 (-20 - +40) °F (°C) |
Charging temperature | 41 - +104 (5 - 40) °F (°C) |
Storage temperature | -4 - +104 (-20 - +40) °F (°C) |
Relative humidity | 20 - 90 % |
Dimensions and weights | |
Length x width x height | 5,24 x 4,33 x 4,88 (133 x 110 x 124) in (mm) |
Weight | 1,19 (0,54) lbs (kg) |
Determined values in acc. with EN 60335-2-79 | |
Sound pressure level LpA | 65 dB(A) |
Uncertainty KpA | 2 dB(A) |
Sound power level LWA + K uncertaintyWA | 79 dB(A) |
<BackPage>
</BackPage>
</BackPage>
